Cable Cleat 36-52mm Stainless Steel Channel Fasteners Dutch Clamp

BRAND: CABAC
SKU: DC-SE36-52SS
$69.50 List price: $92.60
+ −
30 Days Return Electricians Unlock Trade Access

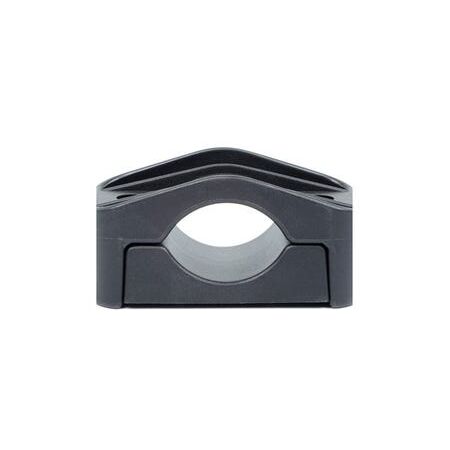

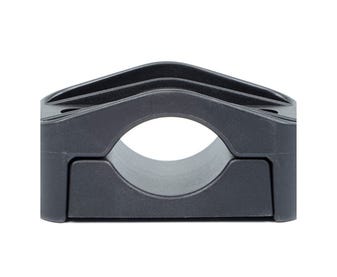

Dutch Clamp single cable cleat features a 36-52mm cable range with stainless steel channel fasteners. Ideal for securing LV cables to strut.

Alternatively Known As: Dutchclamp SE 36-52 Cable Clamp, Single Cable Cleat, LV Cable Cleat, Dutch Clamp Cable Fastener

Technical Specifications
  • Cable Diameter Range: 36–52 mm
  • Cleat Type: Single cable cleat for single or multicore cables
  • Material: Glass-fibre-reinforced polyamide
  • Fasteners: Stainless steel channel fasteners
  • Mechanical Short-Circuit Resistance: 12,000 N
  • Temperature Range: -40°C to 120°C; 225°C momentarily
  • Fire Performance: UL94 self-extinguishing
  • Electrical Properties: Non-magnetic and non-conductive
  • Environmental Resistance: Resistant to oils, UV, ozone, salt, moisture, acids and aggressive chemicals
  • Installation Torque: 5 N·m
  • Product Certification: Tested in accordance with DIN EN IEC 61914:2023
  • Dimensions (H x L x W): 75mm x 105mm x 60mm
  • Weight: 0.3 kg
Key Features
  • Suitable for 36–52 mm diameter cables
  • Single-cable design for installation on strut and support systems
  • Suitable for low-, medium- and high-voltage cables
  • Glass-fibre-reinforced polyamide body provides high mechanical strength
  • Stainless steel channel fasteners provide corrosion-resistant mounting
  • Non-magnetic and non-conductive construction
  • Halogen-free and self-extinguishing UL94 material
  • No sharp cable-contact edges to help minimise sheath damage
  • Suitable for cables, tubes and hoses
  • Lifetime warranty stated for the Dutchclamp SE range
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrician or electrical tradesperson. Select the cleat according to cable diameter and installation conditions, mount it securely to the strut, and tighten the fasteners to the manufacturer's recommended 5 N·m torque. Electrical installations must comply with applicable local requirements and AS/NZS 3000.
Applications
  • Securing low-voltage cables to strut channel
  • Supporting single and multicore power cables
  • Commercial and industrial electrical installations
  • Cable support in switchrooms, substations and plant rooms
  • Mounting cables, conduits, tubes and hoses to support structures
Standards & Compliance
  • AS/NZS 3000:2018 – applicable installation requirements for electrical wiring systems, cable support and mechanical protection
Environmental Benefits
  • Recyclable glass-fibre-reinforced polyamide construction
  • Long service life and resistance to UV, moisture, chemicals and corrosion can reduce replacement waste
  • Halogen-free material supports reduced halogen emissions in fire conditions
  • Non-metallic construction avoids oxidation and corrosion of the cleat body
Warranty Information

Lifetime warranty stated by Dutchclamp for the SE cable cleat range, subject to the manufacturer's terms and conditions.

Available Now

Available through Dutchclamp and authorised electrical distributors in Australia, subject to distributor stock.
