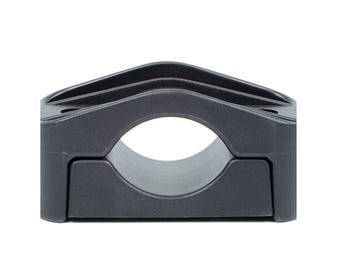

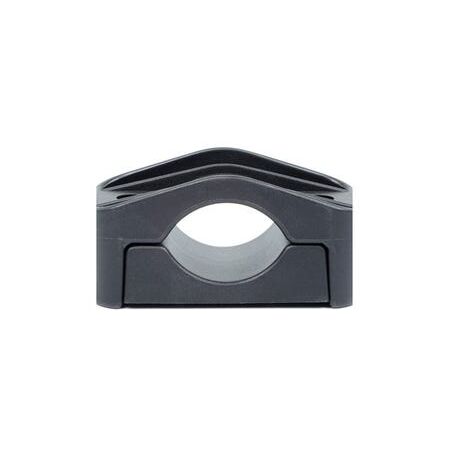

Cable Cleat 75-100mm with SS Channel Fasteners Dutch Clamp
Dutch Clamp single cable cleat features a 75-100mm cable range with stainless steel channel fasteners. Ideal for securing large LV cables to strut.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dutch Clamp Cable Cleat, Dutchclamp SE 75-100 Cable Clamp, Single-Way Cable Cleat, Large LV Cable Cleat
Technical Specifications
- Cable Diameter Range: 75–100 mm
- Application: Single and multicore low, medium and high voltage cables, tubes and hoses
- Material: Glass-fibre-reinforced polyamide (PA)
- Fasteners: Stainless steel channel fasteners for strut mounting
- Short-Circuit Mechanical Resistance: 20,000 N
- Short-Circuit Current Rating: Up to 60 kA, subject to installation configuration and test conditions
- Lateral Retention: 4,500 N
- Axial Retention: 800 N
- Recommended Installation Torque: 5 N·m
- Temperature Range: -40°C to 120°C
- Flame Rating: UL94 self-extinguishing
- Halogen Status: Halogen-free
- Colour: Black
- Electrical Properties: Non-magnetic and non-conductive
- Product Code: 20004
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.65 kg
Key Features
- Secures large single or multicore cables with an outer diameter of 75–100 mm
- Suitable for fixing LV, MV and HV cables to strut or other approved mounting surfaces
- Supplied with stainless steel channel fasteners for strut installation
- Glass-fibre-reinforced polyamide construction resists impact, chemicals, moisture, UV and ozone
- Short-circuit-resistant design tested for cable-cleat applications
- Corrosion-resistant, non-magnetic and non-conductive construction
- Self-extinguishing and halogen-free material
- Recommended 5 N·m tightening torque for the SE 75–100 model
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrician or cable-installation professional. Confirm cable diameter, support spacing, short-circuit withstand requirements and mounting substrate before installation. Tighten the supplied hardware to the manufacturer's recommended 5 N·m torque and install in accordance with the project specification and applicable Australian electrical requirements.
Applications
- Securing large LV power cables to Unistrut or strut channel
- Electrical switchboards and distribution systems
- Industrial power and control cable installations
- Commercial and infrastructure cable support systems
- Cable runs requiring short-circuit-resistant cleating
- Securing large conduits, tubes or hoses within the 75–100 mm diameter range
Standards & Compliance
- IEC 61914:2021 / DIN EN IEC 61914:2023 – cable cleats for electrical installations; verify project acceptance and installation requirements for Australian applications
- AS/NZS 3000 – relevant installation provisions may apply to the associated electrical wiring system
Environmental Benefits
- Glass-fibre-reinforced polyamide is recyclable at end of service life where suitable recycling facilities are available
- Long service life and resistance to UV, moisture, chemicals and corrosion can reduce replacement frequency and installation waste
- Halogen-free and self-extinguishing construction avoids halogenated material content in the cleat
- Stainless steel fasteners provide corrosion resistance and support extended service life
Warranty Information
Dutchclamp states that its cable clamps are covered by a lifetime warranty; confirm terms, exclusions and Australian distributor handling conditions before purchase.
Available Now
Available through Dutchclamp and authorised electrical, cable-management and industrial distributors in Australia.
