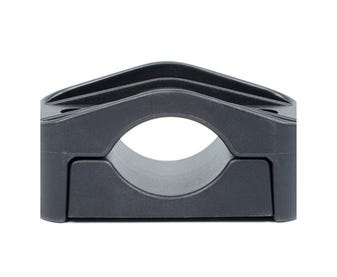

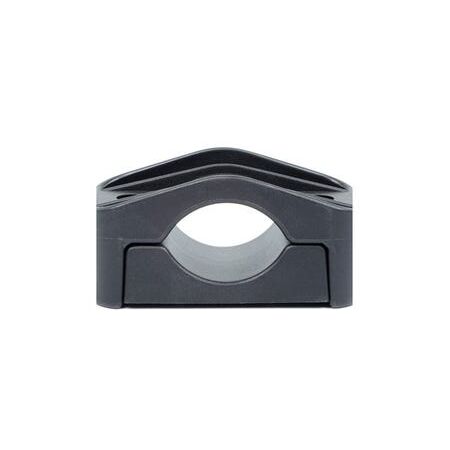

Cable Cleat Kit 26-50mm with M12x70mm Bolt Dutch Clamp
Dutch Clamp cable cleat kit features a 26-50mm cable range and M12x70mm mounting bolt. Ideal for cleating LV cables to steelwork and ladder.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dutchclamp SEG 26-50 cable clamp, single-way cable cleat, Dutch clamp cable cleat kit
Technical Specifications
- Cable Diameter Range: 26–51 mm
- Clamp Type: SEG single-way, stackable cable cleat
- Material: Glass-fibre-reinforced polyamide
- Colour: Black
- Mounting Hardware: M12 x 70 mm bolt kit
- Recommended Tightening Torque: 5 Nm
- Short-Circuit Mechanical Resistance: 15,000 N
- Temperature Range: -40°C to 120°C
- Flammability: UL94 V-0 self-extinguishing
- Electrical Properties: Non-magnetic and non-conductive
- Chemical Resistance: Resistant to oils, UV, ozone, salts, moisture and acids
- Product Certification: DIN EN IEC 61914:2023
- Dimensions (H x L x W): 80mm x 111mm x 60mm
- Weight: 0.22 kg
Key Features
- Secures single or multicore cables within the 26–50 mm diameter range
- Suitable for mounting to steelwork, cable ladder and similar support structures
- Stackable design for space-efficient cable installation
- Rounded contact surfaces help distribute pressure and reduce cable sheath damage
- Glass-fibre-reinforced polyamide construction is corrosion-free and halogen-free
- Designed for short-circuit-resistant cable mounting
- Includes M12 x 70 mm mounting bolt hardware
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical or cable-installation professional. Confirm cable diameter, support structure suitability and required short-circuit withstand performance before installation. Tighten the clamp hardware to the manufacturer's recommended 5 Nm torque.
Applications
- Low-voltage cable installations
- Medium- and high-voltage cable installations where the selected cleat rating is suitable
- Securing single or multicore cables to steelwork
- Cable ladder and tray installations
- Industrial power distribution and infrastructure projects
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules — relevant installation requirements for fixed LV electrical installations
- DIN EN IEC 61914:2023 — cable cleat performance and short-circuit resistance certification
Environmental Benefits
- Recyclable glass-fibre-reinforced polyamide construction
- Halogen-free and self-extinguishing material supports reduced hazardous emissions in fire conditions
- Non-corrosive construction can extend service life and reduce replacement waste
- Durable design and lifetime warranty may reduce product replacement frequency
Warranty Information
Dutchclamp states that its cable clamps are covered by a lifetime warranty, subject to the manufacturer's terms and conditions.
Available Now
Available through Dutchclamp and authorised Australian electrical and cable-management distributors.
