Trade Discount 33%

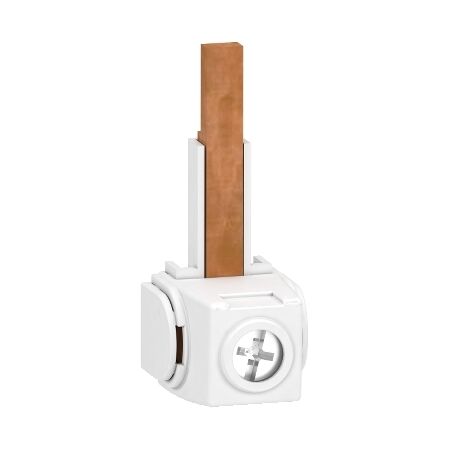

Cable Connector 3P+N Set of 4 | 63A Rated | Screw Clamp Terminals | Horizontal Mount by Clipsal
Cable connector with 3P+N configuration and 63A rating—ideal for residential and light commercial applications. Built for secure connections, with screw clamp terminals and horizontal mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal Resi MAX, Cable Connector, 3P+N set of 4
Brand: Clipsal
SKU: RMXPC3
Alternatively Known As: Clipsal 3P+N Connector, Resi MAX Connector, Electrical Cable Connector
Technical Specifications
- Quantity per set: 4
- Poles description: 3P + N
- Tightening torque: 4 N.m
- Pro-active compliance with EU RoHS and China RoHS regulations.
- Dimensions (H x L x W): 15mm x 85mm x 75mm
- Weight: 0.057 kg
Key Features
- Rated operational current of 63 A at 40 °C.
- Screw clamp terminals for 1-35 mm² rigid connections.
- Horizontal mounting mode.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Light commercial applications requiring reliable connections
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Free of Substances of Very High Concern above the threshold.
- Toxic heavy metal free and mercury free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Resi MAX Cable Connector 3P+N set of 4 is available now for immediate purchase. Ideal for residential and commercial electrical applications.
