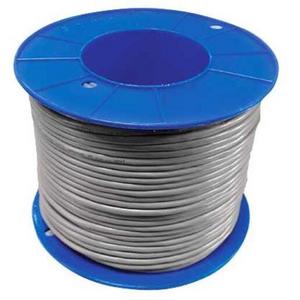

Cable Data 0.22mm 7/0.20 3 Pair Overall Screened | PVC Insulated | Aluminium Tape Screen | by Electra Cables
Cable Data 0.22mm 7/0.20 3 Pair Overall Screened is designed for reliable internal and external interconnections of electronic apparatus. Featuring a plain annealed copper conductor and PVC insulation, this cable ensures minimal electromagnetic interference, making it ideal for computer systems, intercoms, and alarm systems. Built to comply with AS/NZS standards, it guarantees safety and durability in commercial and industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3 Pair Screened Data Cable, Multi-Pair Data Cable, PVC Insulated Data Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power connection
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 8mm x 1000mm x 8mm
- Weight: 0.1 kg
Key Features
- Overall screened multi-pair data cable
- Plain annealed copper conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath
- Must not be connected to mains power supplies
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with low voltage data cabling and screening requirements. Must not be connected to mains power supplies.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
Standards & Compliance
- Complies with AS/NZS 3808 – PVC Insulation and Sheath
- Complies with AS1125 – Conductor Standards
Environmental Benefits
- PVC insulation and sheath materials are compliant with AS/NZS 3808 standards ensuring safety and durability
- Screening reduces electromagnetic interference, improving system efficiency and reducing energy waste
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Electra Cables Data Cable 0.22mm 7/0.20 3 Pair Overall Screened is available for immediate purchase, ideal for electronic interconnection applications in commercial and industrial environments.
