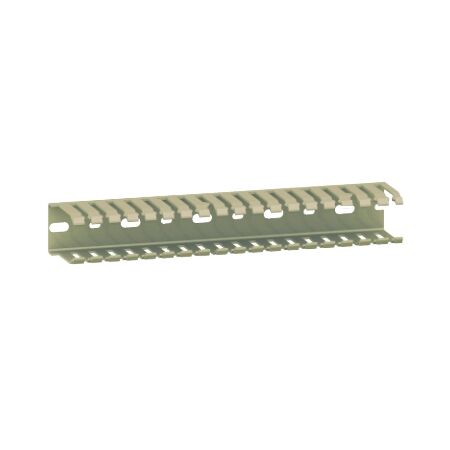

Cable Duct 75 x 37.5 mm | Flame Retardant | Easy Installation | Grey by Clipsal

BRAND: Clipsal
SKU: AK2GD3775
$57.60 List price: $71.80
Free pick up (over 1 meter)
For delivery quote message
Cable duct with 75 x 37.5 mm dimensions and flame retardant PVC—ideal for industrial cable management. Built for easy installation with clip-on support, ensuring safety and efficiency.

Product Name/Title: Spacial CRN, Cable duct, 75 x 37.5 mm, without cover, grey

Brand: Clipsal

SKU: AK2GD3775

Alternatively Known As: Cable management duct, PVC cable duct, industrial cable duct

Technical Specifications
  • Material: PVC (polyvinyl chloride)
  • Ambient air temperature for operation: -5...60 °C
  • Total number of wires: 160
  • Quantity per set: set of 8
  • Dimensions (H x L x W): 75mm x 2000mm x 37.5mm
  • Weight: 0.8 kg
Key Features
  • Clip-on support by screws for easy installation.
  • Flame retardant (V-0 conforming to UL 94).
  • Fire resistance up to 960 °C conforming to IEC 60695-2-1/1.
Professional Installation Requirements
  • Installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Cable management in commercial and industrial settings.
Standards & Compliance
  • Complies with VDE 0660, VDE 0506, DIN 43659.
Environmental Benefits
  • Pro-active China RoHS declaration.
Warranty Information

18 months warranty.

Available Now

The Clipsal Spacial CRN Cable Duct 75 x 37.5 mm is available now for immediate purchase. Ideal for industrial cable management solutions.

AK2GD3775 (AK2GD3775, 209 Kb) [Download]
