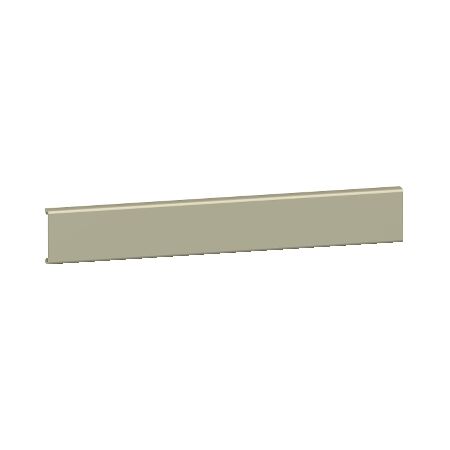

Cable Duct Cover 37.5mm | 2000mm Length | Flame Retardant PVC by Clipsal

BRAND: Clipsal
SKU: AK2CD37
$17.90 List price: $26.90
+
Cable duct cover with 37.5mm width and 2000mm length—ideal for industrial cable management. Built for safety, with flame retardant PVC material and compatibility with various systems.

Product Name/Title: Spacial CRN, Cover, for Cable Duct DIN

Brand: Clipsal

SKU: AK2CD37

Alternatively Known As: Cable Duct Cover, DIN Cable Duct Cover, Spacial CRN Cover

Technical Specifications
  • Cable duct width: 37.5 mm
  • Length: 2000 mm
  • Material: PVC (polyvinyl chloride)
  • Ambient air temperature for operation: -5...60 °C
  • Dimensions (H x L x W): 10mm x 2000mm x 37.5mm
  • Weight: 0.22 kg
Key Features
  • Compatible with PanelSeT S3D, CRN, Thalassa PLAT, and PLM.
  • Flame retardant material (V-0 conforming to UL 94).
  • Fire resistance up to 960 °C conforming to IEC 60695-2-1/1.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Cable management in commercial and industrial settings
Standards & Compliance
  • Complies with VDE 0506, VDE 0660, DIN 43659.
Environmental Benefits
  • Complies with China RoHS regulations.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Spacial CRN Cover for Cable Duct DIN is available now for immediate purchase. Ideal for industrial cable management applications.

AK2CD37 (AK2CD37, 194 Kb) [Download]
