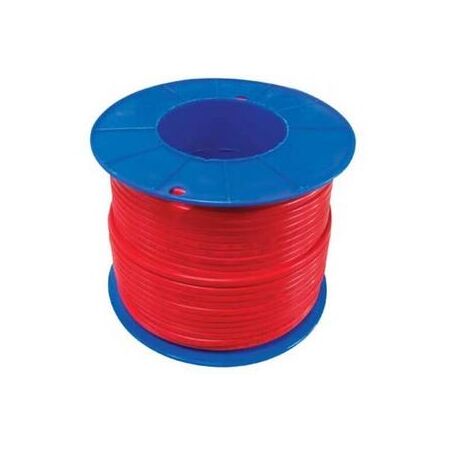

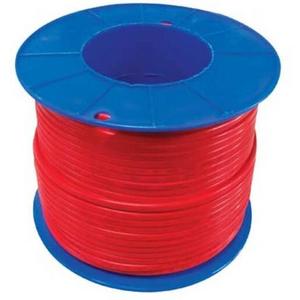

Cable Fire Control 7/0.50 2 Core Light Duty | LSZH | Red | by Electra Cables

BRAND: Electra Cables
SKU: FC7502-LD-100
$86.24 List price: $114.35
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Cable Fire Control 7/0.50 2 Core Light Duty is designed for fire alarm and evacuation systems, featuring Low Smoke Zero Halogen (LSZH) construction for enhanced safety. With a voltage rating of 250V and a temperature range of -15°C to 75°C, this cable ensures reliable performance in critical situations, making it ideal for smoke detectors and emergency response applications.

Alternatively Known As: Fire Alarm Cable, Fire Control Cable, LSZH Fire Cable, Evacuation System Cable

Technical Specifications
  • Conductor: 7 strands of 0.50mm diameter
  • Number of cores: 2
  • Voltage rating: 250V
  • Temperature rating: -15°C to 75°C
  • Cable type: Light duty fire control
  • Sheath colour: Red
  • Low Smoke Zero Halogen (LSZH)
  • Dimensions (H x L x W): 10mm x 100000mm x 10mm
  • Weight: 2.5 kg
Key Features
  • Light duty fire control cable designed for fire alarm and evacuation systems
  • Low Smoke Zero Halogen (LSZH) for enhanced safety
  • Operating voltage of 250 Volts
  • Operating temperature range from -15°C to 75°C
Professional Installation Requirements
  • Installation should be performed by a licensed electrician familiar with fire alarm and evacuation system wiring standards.
Applications
  • Fire Alarm Systems
  • Smoke Detectors
  • Speakers for Evacuation Systems
  • Modules and Evacuation Systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low Smoke Zero Halogen construction reduces toxic emissions during fire incidents
  • Improves safety for occupants and emergency responders
Warranty Information

Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.

Available Now

The Electra Cables Cable Fire Control 7/0.50 2 Core Light Duty 100M Red is available for immediate purchase, ideal for fire alarm and evacuation system installations.
