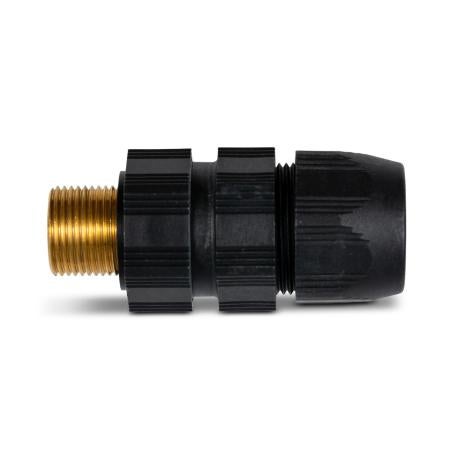

Cable Gland Brass Composite M20 | IP68 Rated | Fast Fit Design | Corrosion Resistant | @Each by Wattmaster
The Cable Gland Brass Composite M20 is designed for secure and weatherproof cable installations, accommodating cable diameters from 16-21mm. With an IP68 rating for dust and water protection, this gland is perfect for both indoor and outdoor applications, ensuring durability and compliance with IEC 62444 standards. Ideal for industrial and commercial settings, it features a fast fit design for easy installation without the need for a shroud.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Composite M20 | IP68 Rated | Fast Fit Design | Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW20-NC
Alternatively Known As: Brass Composite Cable Gland M20, Armoured Cable Gland M20, Weatherproof Cable Gland M20
Technical Specifications
- Cable Diameter Range: 16-21mm
- Thread Size: M20x1.5
- Material: Brass composite with nylon coating
- Ingress Protection: IP68
- Standards Compliance: IEC 62444
- UV Stabilised: Yes
- Corrosion Resistant: Yes
- Includes: Gland, locknut, earth tag
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Approved to IEC 62444 standard
- Fast fit design for easy installation
- No shroud required for installation
- IP68 rated for dust and water ingress protection
- Corrosion resistant brass composite material
- UV stabilised for outdoor durability
- Zero halogen for safety in fire conditions
- Comes complete with gland, locknut, and earth tag
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Industrial and commercial armoured cable installations
- Outdoor and indoor electrical wiring requiring weatherproof cable glands
- Electrical enclosures and equipment requiring secure cable entry
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen materials reduce toxic emissions in case of fire
- Durable corrosion-resistant materials extend product lifespan, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Cable Gland Brass Composite M20 Armoured Cable Diameter 16-21mm is available for immediate purchase, ideal for secure and weatherproof cable installations in industrial and commercial settings.
