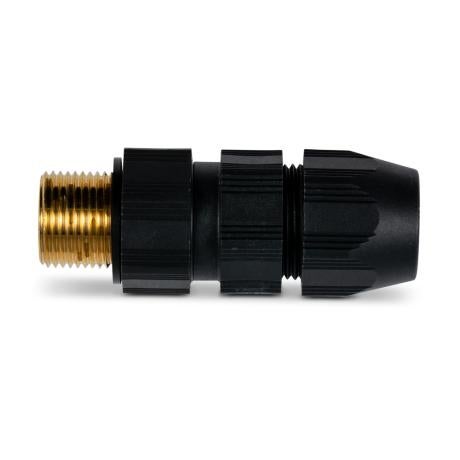

Cable Gland Brass Composite M20 | IP68 Rated | Fast Fit Design | UV Stabilised | @Each by Wattmaster
The Cable Gland Brass Composite M20 is designed for secure armoured cable installations, accommodating cable diameters of 12-16mm. With an IP68 rating for dust and water protection, this gland is perfect for both indoor and outdoor applications. Its fast fit design ensures easy installation without the need for a shroud, making it ideal for electricians and contractors seeking reliable and durable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Composite M20 | IP68 Rated | Fast Fit Design | UV Stabilised | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW20SB-NC
Alternatively Known As: Brass Composite Cable Gland M20, Armoured Cable Gland M20, Weatherproof Cable Gland M20
Technical Specifications
- Thread Size: M20x1.5
- Cable Diameter Range: 12-16mm
- Material: Brass composite with nylon coating
- Ingress Protection: IP68
- Standards Compliance: IEC 62444
- Includes: Gland, locknut, earth tag
- UV Stabilised: Yes
- Halogen Free: Yes
- Dimensions (H x L x W): 40mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Approved to IEC 62444 standard
- Fast fit design for easy installation
- No shroud required for installation
- IP68 rated for dust and water ingress protection
- Corrosion resistant brass composite material
- UV stabilised for outdoor durability
- Zero halogen for safety in fire conditions
- Includes gland, locknut, and earth tag for complete installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Industrial and commercial armoured cable installations
- Outdoor and indoor electrical wiring requiring weatherproof cable glands
- Electrical panels and equipment requiring secure cable entry points
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen materials reduce toxic emissions in case of fire
- Durable corrosion-resistant materials extend product lifespan, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Composite M20 Cable Gland is available for immediate purchase, ideal for secure and weatherproof armoured cable installations.
