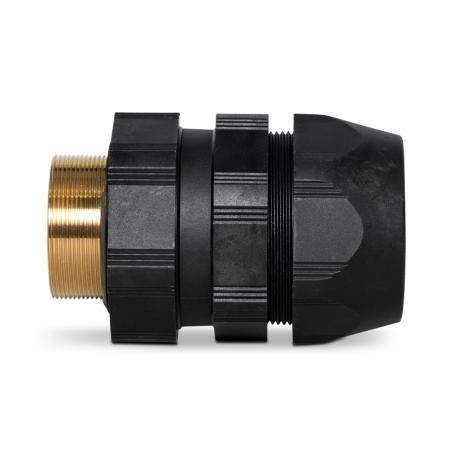

Cable Gland Brass Composite M50 | IP68 Rated | Fast Fit Design | UV Stabilised | @Each by Wattmaster
The Cable Gland Brass Composite M50 is designed for armoured cable installations with a diameter range of 39-47mm. Featuring an IP68 rating for superior water and dust protection, this gland is perfect for both indoor and outdoor applications. Built from corrosion-resistant brass composite, it ensures durability and safety, making it ideal for industrial and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Composite M50 | IP68 Rated | Fast Fit Design | UV Stabilised | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW50-NC
Alternatively Known As: Brass Composite Cable Gland M50, Armoured Cable Gland M50, Weatherproof Cable Gland M50
Technical Specifications
- Cable Diameter Range: 39-47mm
- Thread Size: M50x1.5
- Material: Brass composite with nylon coating
- Ingress Protection: IP68
- Standards Compliance: IEC 62444
- UV Stabilised
- Includes gland, locknut, and earth tag
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.15 kg
Key Features
- Approved to IEC 62444 standard
- Fast fit design for easy installation
- No shroud required
- IP68 rated for superior water and dust ingress protection
- Corrosion resistant brass composite material
- UV stabilised for outdoor durability
- Zero halogen for safety in fire conditions
- Comes complete with gland, locknut, and earth tag
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Industrial and commercial armoured cable installations
- Outdoor and indoor electrical wiring requiring weatherproof cable glands
- Electrical and telecommunications cable protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen materials reduce toxic emissions in case of fire
- Durable corrosion-resistant design extends product life and reduces waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Composite M50 Cable Gland is available for immediate purchase, ideal for industrial and commercial armoured cable applications.
