Cable Gland Brass Composite M63 | IP68 Rated | Fast Fit Design | Corrosion Resistant | @Each by Wattmaster

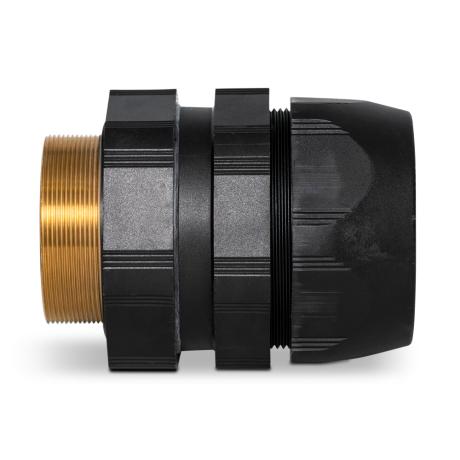

The Cable Gland Brass Composite M63 is designed for secure armoured cable installations with a diameter range of 59-66mm. Featuring an IP68 rating for dust and water protection, this gland is perfect for both indoor and outdoor applications. Its fast fit design ensures easy installation without the need for a shroud, making it ideal for industrial and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Composite M63 | IP68 Rated | Fast Fit Design | Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW63L-NC
Alternatively Known As: Brass Composite Cable Gland M63, Armoured Cable Gland M63, Weatherproof Cable Gland M63
Technical Specifications
- Cable Diameter Range: 59-66mm
- Thread Size: M63x1.5
- Material: Brass composite with nylon coating
- Ingress Protection: IP68
- Standards Compliance: IEC 62444
- Includes gland, locknut, and earth tag
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.5 kg
Key Features
- Approved to IEC 62444 for cable gland performance
- Fast fit design for easy installation
- No shroud required for installation
- IP68 rated for dust and water ingress protection
- Corrosion resistant and UV stabilised
- Zero halogen material for safety
- Comes complete with gland, locknut, and earth tag
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial and commercial armoured cable installations
- Outdoor and indoor electrical wiring protection
- Weatherproof and corrosion-resistant cable sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen material reduces toxic emissions in case of fire
- UV stabilised for long-lasting outdoor use, reducing replacement waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Brass Composite M63 Cable Gland is available for immediate purchase, ideal for secure and weatherproof armoured cable installations.
