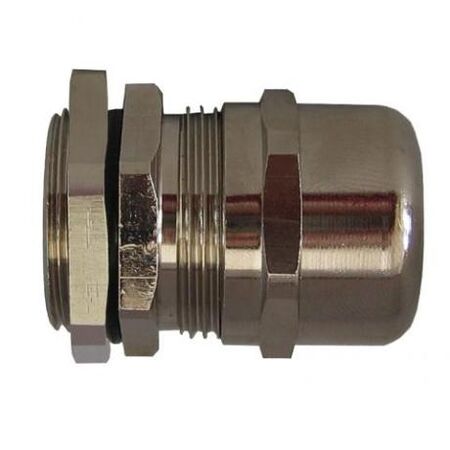

Cable Gland Brass EMC Gen 4 Weatherproof M40 | IP66/68 Rated | 22-32mm Cable Diameter | 15mm Thread Length | by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M40 is designed for secure cable sealing with a diameter range of 22-32mm and a 15mm thread length. Ideal for both indoor and outdoor electrical installations requiring EMC protection, this durable gland features IP66/68 weatherproofing and a chloroprene seal for effective sealing. Perfect for industrial and commercial applications, it ensures compliance and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M40 | IP66/68 Rated | 22-32mm Cable Diameter | 15mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: EMC40
Alternatively Known As: EMC Cable Gland M40, Brass Cable Gland, Weatherproof Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 22-32mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m immersion)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 40mm x 55mm x 40mm
- Weight: 0.15 kg
Key Features

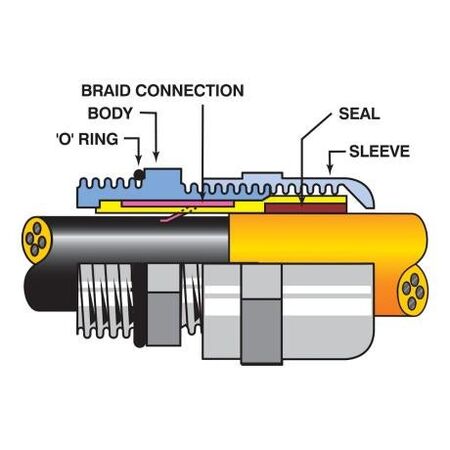

- Provides seal on cable sheath and contact between screen and earth (body)
- Weatherproof with IP66/68 protection (up to 50m immersion)
- Brass construction with nickel plating for durability
- Includes locknut as standard
- Seal made of chloroprene for effective sealing
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring EMC protection
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof Cable Gland M40 is available for immediate purchase, ideal for secure and compliant cable installations in industrial and commercial environments.
