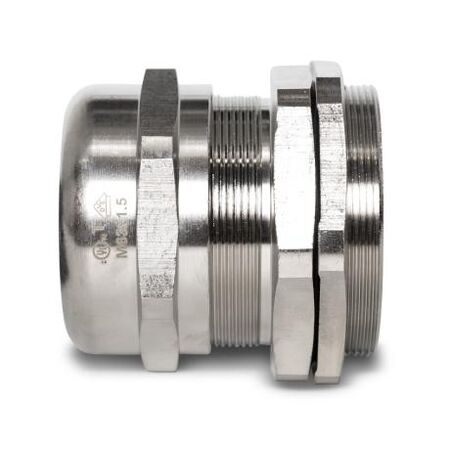

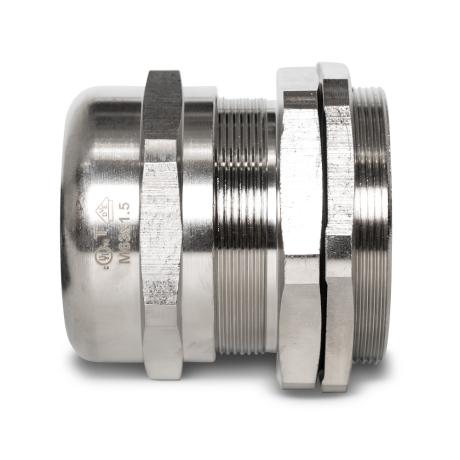

Cable Gland Brass EMC Gen 4 Weatherproof M63 | IP66/68 Rated | 34-44mm Cable Diameter | 15mm Thread Length | by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M63 is designed for reliable cable sealing and protection, featuring a cable diameter range of 34-44mm and a 15mm thread length. With an IP66/68 rating, it ensures excellent water ingress protection, making it ideal for both indoor and outdoor electrical installations requiring EMC shielding. Crafted from durable brass with nickel plating, this gland is built to withstand harsh environments while providing effective environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M63 | IP66/68 Rated | 34-44mm Cable Diameter | 15mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: EMC63
Alternatively Known As: EMC Cable Gland M63, Brass Cable Gland, Weatherproof Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 34-44mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Dimensions (H x L x W): 40mm x 50mm x 63mm
- Weight: 0.3 kg
Key Features

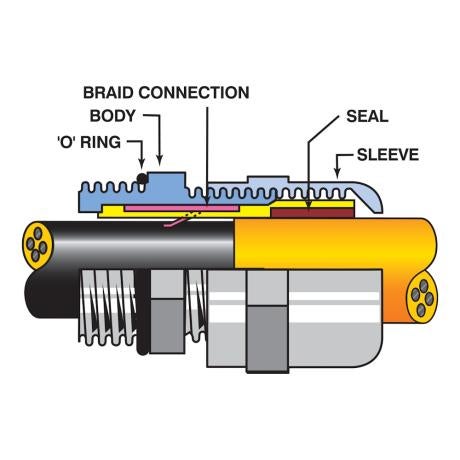

- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (50m water ingress protection)
- Made from brass with nickel plating for durability and corrosion resistance
- Includes locknut as standard
- Seal made from chloroprene for effective environmental protection
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable sealing and protection
- Electrical installations requiring EMC shielding
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof Cable Gland M63 is available for immediate purchase, ideal for industrial and commercial electrical cable protection applications.
