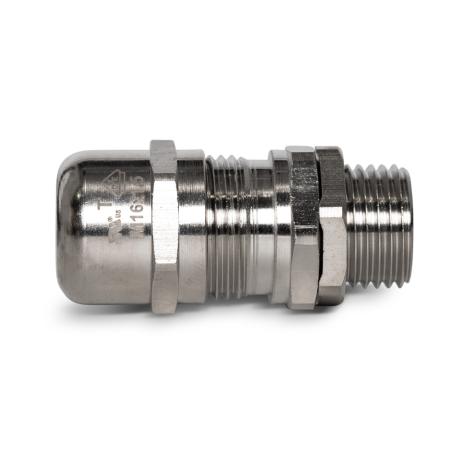

Cable Gland Brass EMC Gen 4 Weatherproof M16 | IP66/68 Rated | 5-10mm Cable Diameter | 12mm Thread Length | by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M16 is designed for reliable cable management in both indoor and outdoor environments. With a cable diameter range of 5-10mm and a robust IP66/68 rating, it ensures excellent weatherproof sealing and EMC protection. Ideal for industrial and commercial applications, this gland features durable brass construction with nickel plating for corrosion resistance and includes a locknut for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M16 | IP66/68 Rated | 5-10mm Cable Diameter | 12mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: EMC16
Alternatively Known As: EMC Cable Gland M16, Brass Cable Gland, Weatherproof Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 5-10mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 30mm x 30mm x 16mm
- Weight: 0.1 kg
Key Features

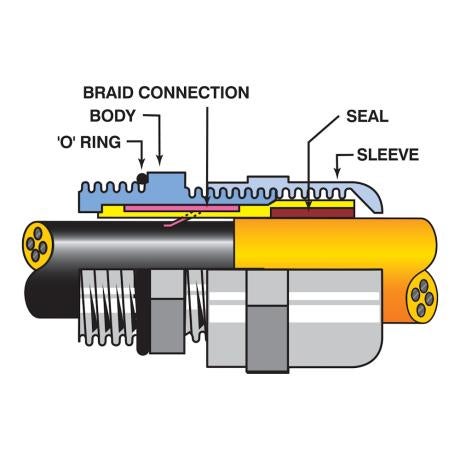

- Provides seal on cable sheath and contact between screen and earth (body)
- Weatherproof with IP66/68 rating (50m water ingress protection)
- Brass material with nickel plating for corrosion resistance
- Includes locknut as standard
- Seal made of chloroprene for durability
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating reduce need for frequent replacements
- Weatherproof design minimizes environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for details.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof Cable Gland M16 is available for immediate purchase, ideal for industrial and commercial cable management applications.
