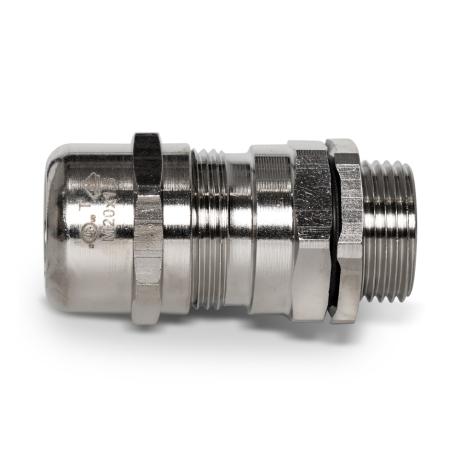

Cable Gland Brass EMC Gen 4 Weatherproof M20 | IP66/68 Rated | Chloroprene Seal | @Each by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M20 is designed for reliable cable sealing with a diameter range of 7.5-14mm and a robust IP66/68 rating for outdoor use. Ideal for industrial and commercial applications, this gland features a durable brass construction with a chloroprene seal, ensuring optimal EMC protection and longevity in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M20 | IP66/68 Rated | Chloroprene Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: EMC20
Alternatively Known As: EMC Cable Gland M20, Brass Cable Gland, Weatherproof Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter: 7.5-14mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m immersion)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 20mm x 32mm x 20mm
- Weight: 0.1 kg
Key Features

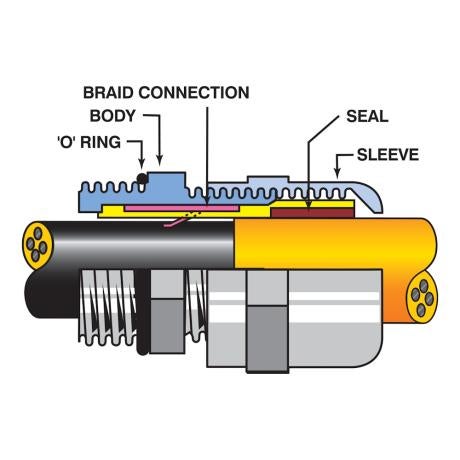

- Provides seal on cable sheath and contact between screen and earth (body)
- Weatherproof with IP66/68 protection (up to 50m immersion)
- Brass material with nickel plating for durability
- Locknut supplied as standard
- Seal made of chloroprene
- Temperature range from –20°C to +100°C, intermittent –40°C to +150°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring EMC protection
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Cable Gland Brass EMC Gen 4 Weatherproof M20 is available for immediate purchase, ideal for industrial and commercial cable management applications.
