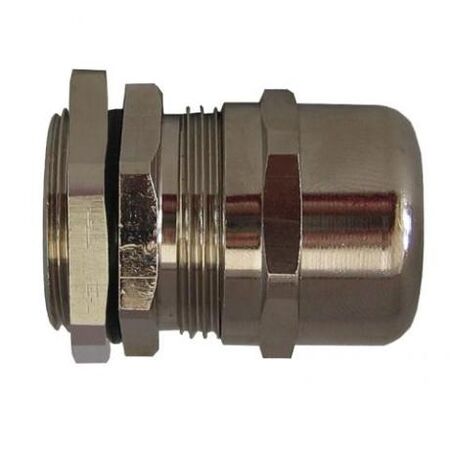

Cable Gland Brass EMC Gen 4 Weatherproof M25 | IP66/68 Rated | 10-18mm Cable Diameter | Nickel Plated Durability | by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M25 is designed for reliable indoor and outdoor cable sealing, accommodating cable diameters from 10-18mm. With an IP66/68 rating for water and dust protection, this durable brass gland ensures optimal EMC compliance and longevity, making it perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M25 | IP66/68 Rated | 10-18mm Cable Diameter | Nickel Plated Durability | by Wattmaster
Brand: Wattmaster
SKU: EMC25
Alternatively Known As: EMC Cable Gland M25, Brass Cable Gland, Weatherproof Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter: 10-18mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 25mm x 37mm x 25mm
- Weight: 0.1 kg
Key Features

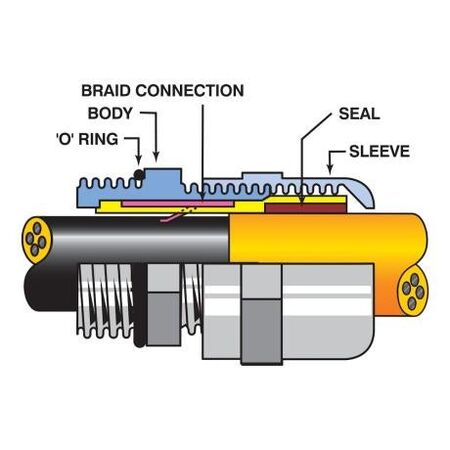

- Provides seal on cable sheath and contact between screen and earth (body)
- Weatherproof with IP66/68 rating (50m)
- Brass material with nickel plating for durability
- Locknut supplied as standard
- Seal made of chloroprene
- Temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring EMC protection
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design minimizes environmental damage and cable wear
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof M25 Cable Gland is available for immediate purchase, ideal for industrial and commercial electrical cable management applications.
