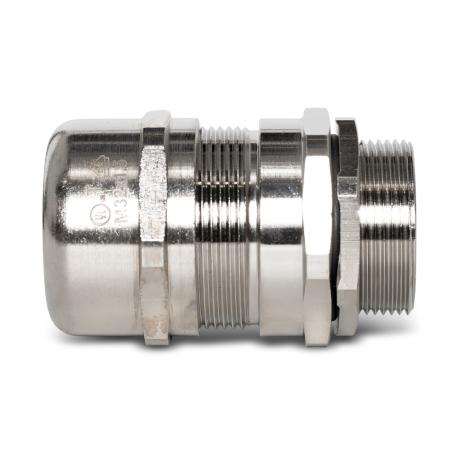

Cable Gland Brass EMC Gen 4 Weatherproof M32 | IP66/68 Rated | 16-25mm Cable Diameter | 15mm Thread Length | by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M32 is designed for reliable cable management in both indoor and outdoor environments. With a cable diameter range of 16-25mm and a robust IP66/68 rating, it ensures effective sealing and EMC protection. Ideal for industrial and commercial applications, this durable brass gland features a nickel-plated finish for enhanced corrosion resistance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M32 | IP66/68 Rated | 16-25mm Cable Diameter | 15mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: EMC32
Alternatively Known As: EMC Cable Gland M32, Brass EMC Cable Gland, Weatherproof Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Cable Diameter Range: 16-25mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (50m water submersion)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 15mm x 32mm x 32mm
- Weight: 0.1 kg
Key Features

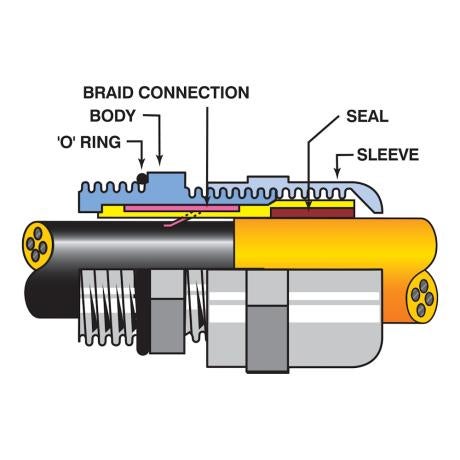

- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (up to 50m water ingress protection)
- Brass construction with nickel plating for durability and corrosion resistance
- Includes locknut as standard
- Seal made from chloroprene for effective environmental protection
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and screening
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
- Weatherproof design protects cables from environmental damage, extending cable life
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof M32 Cable Gland is available for immediate purchase, ideal for industrial and commercial cable management applications.
