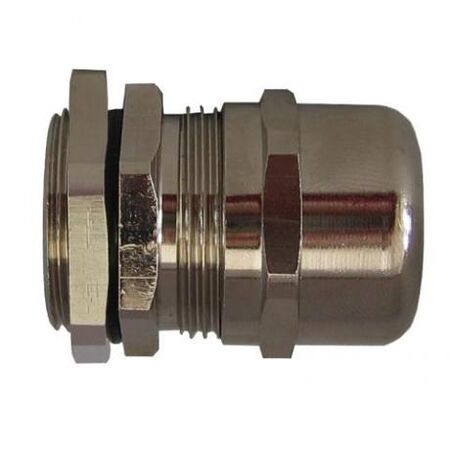

Cable Gland Brass EMC Gen 4 Weatherproof M50 | IP66/68 Rated | 30-38mm Cable Diameter | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass EMC Gen 4 Weatherproof M50 is designed for reliable indoor and outdoor cable installations requiring EMC protection. With a cable diameter range of 30-38mm and an IP66/68 rating for water ingress protection, this gland ensures durability and effective sealing. Ideal for industrial and commercial applications, it features a robust brass construction with nickel plating, making it resistant to corrosion and environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Gen 4 Weatherproof M50 | IP66/68 Rated | 30-38mm Cable Diameter | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: EMC50
Alternatively Known As: EMC Cable Gland M50, Brass EMC Cable Gland, Weatherproof Cable Gland M50, Nickel Plated Cable Gland
Technical Specifications
- Cable Diameter Range: 30-38mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (up to 50m water depth)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 50mm x 65mm x 50mm
- Weight: 0.15 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (up to 50m water ingress protection)
- Brass construction with nickel plating for durability and corrosion resistance
- Includes locknut as standard
- Seal made of chloroprene for effective environmental protection
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents ingress of water and contaminants, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Gen 4 Weatherproof M50 Cable Gland is available for immediate purchase, ideal for industrial and commercial cable installations requiring robust EMC and weatherproof protection.
