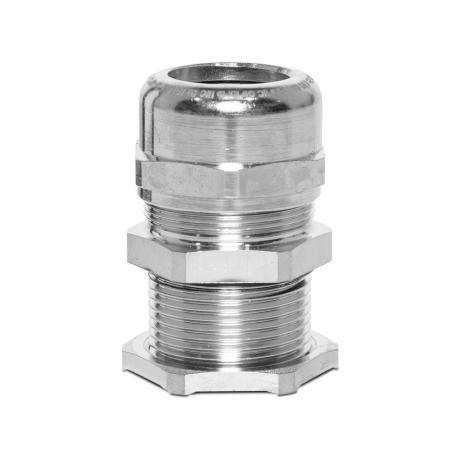

Cable Gland Brass EMC Hazardous Weatherproof M16 | IP66/68 Rated | Triple Seal Design | @Each by Wattmaster
The Cable Gland Brass EMC Hazardous Weatherproof M16 is designed for reliable sealing in hazardous area installations. With a cable size compatibility of 4-8mm and an IP66/68 rating for water and dust protection, this gland ensures electrical continuity and durability. Ideal for industrial and mining applications, it features a triple seal with Neoprene seals, making it perfect for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Hazardous Weatherproof M16 | IP66/68 Rated | Triple Seal Design | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBEBM16S
Alternatively Known As: EMC Cable Gland M16, Hazardous Area Cable Gland, Brass Weatherproof Cable Gland, Shielded Cable Gland
Technical Specifications
- Cable Size Compatibility: 4.0mm to 8.0mm
- Material: Brass
- Ingress Protection: IP66/68 (50m)
- Temperature Range: -40°C to +80°C
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC60259
- Seal Type: Triple seal with Neoprene seals
- Electrical Continuity: Provides continuity between cable and gland (not suitable as earth)
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Hazardous area EMC cable gland for shielded cable with triple seal
- Provides seal on cable sheath and electrical continuity between cable and gland
- IP66/68 rated for water and dust ingress protection up to 50m
- Supplied with Neoprene seals for enhanced durability
- Temperature range from -40°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with hazardous area cable gland installation standards.
Applications
- Suitable for hazardous area installations requiring EMC cable glands
- Indoor and outdoor electrical cable sealing and protection
- Used in industrial, mining, and hazardous environment electrical setups
Standards & Compliance
- Complies with AS/NZS 60079 series for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and sealed design prevents environmental contamination
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland Brass EMC Hazardous Weatherproof M16 Cable 4-8mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
