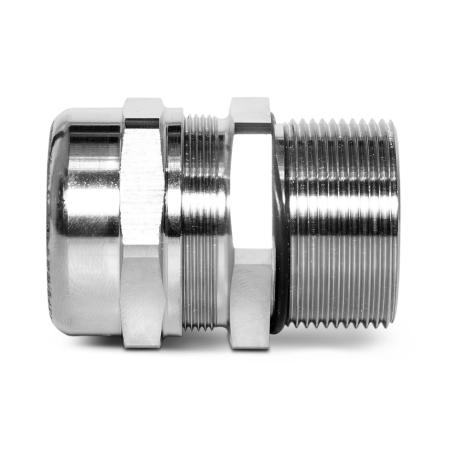

Cable Gland Brass EMC Hazardous Weatherproof M32 | IP66/68 Rated | Triple Seal Protection | 14-24mm Cable Size | by Wattmaster
The Cable Gland Brass EMC Hazardous Weatherproof M32 is designed for reliable cable protection in hazardous areas, accommodating cable sizes from 14mm to 24mm. With an IP66/68 rating for water and dust ingress protection, this gland features a triple seal with Neoprene seals, ensuring electrical continuity and weatherproof sealing. Ideal for industrial installations, it meets stringent EMC compliance standards, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Hazardous Weatherproof M32 | IP66/68 Rated | Triple Seal Protection | 14-24mm Cable Size | by Wattmaster
Brand: Wattmaster
SKU: ALCBEBM32
Alternatively Known As: EMC Cable Gland M32, Hazardous Area Cable Gland, Weatherproof Brass Cable Gland, Shielded Cable Gland
Technical Specifications
- Cable Size Range: 14.0mm - 24.0mm
- Material: Brass
- Ingress Protection: IP66/68 (50m submersion)
- Temperature Range: -40°C to +80°C
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC60259
- Sealing: Triple seal with Neoprene seals
- EMC Protection: Provides electrical continuity between cable and gland (not for earth use)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Hazardous area EMC cable gland for shielded cable with triple seal
- Suitable for indoor or outdoor use
- Provides seal on cable sheath and electrical continuity between cable and gland (not suitable for use as an earth)
- IP66/68 rated for water and dust ingress protection (50m submersion)
- Supplied with Neoprene seals
- Temperature range from -40°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with hazardous area cable gland installation and EMC requirements.
Applications
- Industrial hazardous area cable installations
- Indoor and outdoor shielded cable protection
- Electrical installations requiring EMC compliance and weatherproof sealing
Standards & Compliance
- Complies with AS/NZS 60079 series for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and sealed design prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland Brass EMC Hazardous Weatherproof M32 Cable 14-24mm is available for immediate purchase, ideal for hazardous area and outdoor cable installations requiring EMC protection.
