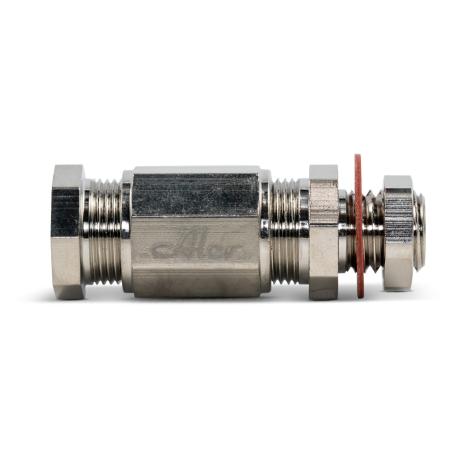

Cable Gland Brass EMC Weatherproof M12 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M12 is designed for reliable cable installations, featuring a cable diameter range of 5.8-10mm and an IP66/68 rating for submersion up to 30 meters. Constructed from durable brass with nickel plating, it ensures effective sealing and grounding, making it ideal for both indoor and outdoor applications in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M12 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC12
Alternatively Known As: EMC Cable Gland M12, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 5.8-10mm
- Material: Brass with Nickel Plating
- Seal Material: TPE
- Ingress Protection: IP66/68 (up to 30m submersion)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides effective seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating, suitable for submersion up to 30 meters
- Constructed from durable brass with nickel plating for corrosion resistance
- Includes locknut as standard for secure installation
- Seal made from TPE for reliable temperature and environmental resistance
- Operates within temperature range of –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof M12 Cable Gland is available for immediate purchase, ideal for industrial and commercial cable installations requiring EMC protection and weatherproofing.
