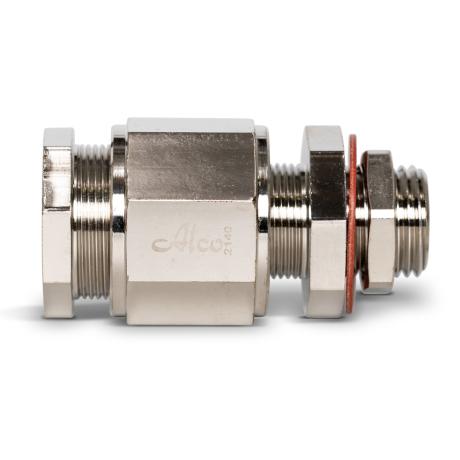

Cable Gland Brass EMC Weatherproof M16 | IP66/68 Rated | Durable Nickel Plated | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M16 is designed for cable diameters ranging from 8.2 to 13mm, ensuring a secure seal and effective EMC grounding. With an IP66/68 rating, it provides superior weatherproofing for both indoor and outdoor electrical installations. Made from durable nickel-plated brass, this gland is perfect for industrial and commercial applications, offering long-lasting protection against environmental damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M16 | IP66/68 Rated | Durable Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC16
Alternatively Known As: EMC Cable Gland M16, Brass Cable Gland, Weatherproof Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 8.2-13.0 mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Made from durable brass with nickel plating for corrosion resistance
- Includes locknut as standard for secure fitting
- Seal made from TPE for effective environmental protection
- Wide temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor electrical installations
- Industrial and commercial cable management
- EMC shielding for sensitive electronic equipment
- Weatherproof cable sealing in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design prevents environmental damage and cable waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M16 for 8.2-13mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection and weatherproofing.
