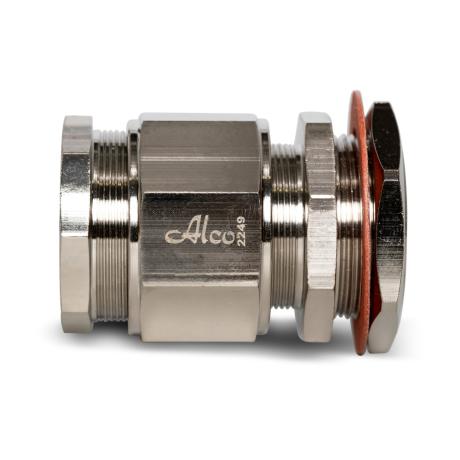

Cable Gland Brass EMC Weatherproof M32 | IP66/68 Rated | 22-26mm Cable Diameter | by Wattmaster
The Cable Gland Brass EMC Weatherproof M32 is designed for reliable indoor and outdoor cable installations, accommodating a cable diameter range of 22-26mm. With an IP66/68 rating for water ingress protection and durable brass construction with nickel plating, it ensures long-lasting performance in industrial and commercial environments. Ideal for applications requiring EMC protection, this cable gland guarantees secure sealing and effective environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M32 | IP66/68 Rated | 22-26mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCEMC32
Alternatively Known As: EMC Cable Gland M32, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 22-26mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Brass material with nickel plating for durability and corrosion resistance
- Locknut supplied as standard for secure fitting
- Seal made of TPE for effective environmental protection
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M32 for 22-26mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection.
