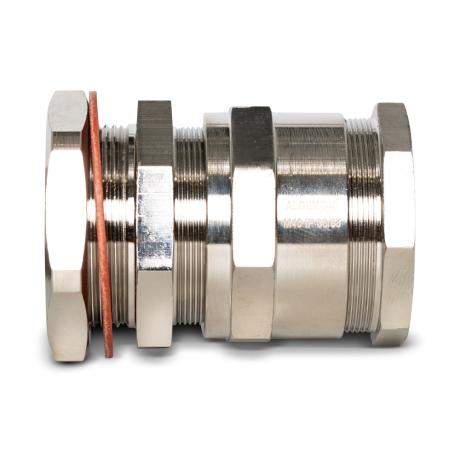

Cable Gland Brass EMC Weatherproof M40 | IP66/68 Rated | Nickel Plated for Durability | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M40 is designed for cable diameters ranging from 26-33.5mm, ensuring a secure seal and reliable EMC protection. With an IP66/68 rating, it’s perfect for both indoor and outdoor installations, providing durability and corrosion resistance thanks to its brass and nickel-plated construction. Ideal for industrial and commercial electrical wiring, this cable gland guarantees safety and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M40 | IP66/68 Rated | Nickel Plated for Durability | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC40
Alternatively Known As: EMC Cable Gland M40, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 26.0-33.5mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Standard Compliance: AS1939-1990
- Locknut Supplied: Yes
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Locknut supplied as standard for secure fitting
- Temperature range from –20°C to +80°C
- Made from brass with nickel plating for durability and corrosion resistance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents ingress of water, reducing risk of electrical faults and environmental damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M40 for 26-33.5mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection.
