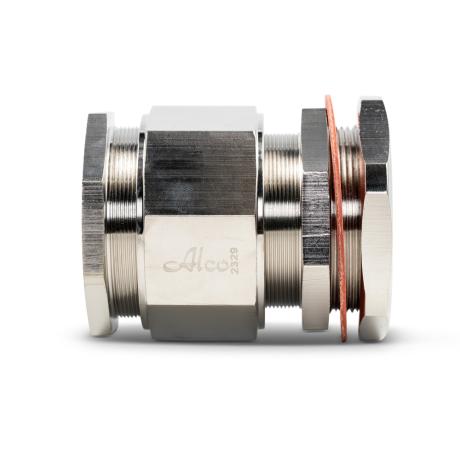

Cable Gland Brass EMC Weatherproof M50 | IP66/68 Rated | 33-42mm Cable Diameter | by Wattmaster
The Cable Gland Brass EMC Weatherproof M50 is designed for reliable indoor and outdoor cable installations requiring EMC protection. With a cable diameter range of 33-42mm and an IP66/68 rating for water ingress protection, this durable brass gland ensures effective sealing and grounding. Ideal for industrial and commercial applications, it features a nickel-plated finish for corrosion resistance and includes a locknut for secure fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M50 | IP66/68 Rated | 33-42mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCEMC50
Alternatively Known As: EMC Cable Gland M50, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 33-42mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Standards Compliance: AS1939-1990
- Locknut Supplied: Yes
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- Provides effective seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Constructed from brass with nickel plating for durability and corrosion resistance
- Includes locknut as standard for secure fitting
- Seal made from TPE for reliable environmental protection
- Operates in temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof design prevents environmental damage to cables, extending cable life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M50 for 33-42mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection.
