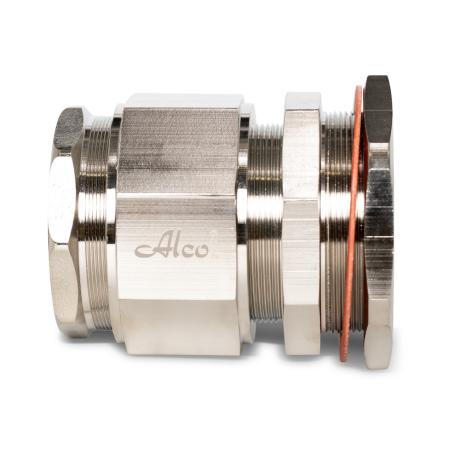

Cable Gland Brass EMC Weatherproof M63 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M63 is designed for cable diameters of 41-50mm, providing superior weatherproofing with an IP66/68 rating. Ideal for both indoor and outdoor installations, this gland ensures effective EMC protection and features a durable brass construction with nickel plating for corrosion resistance. Perfect for industrial and commercial electrical applications, it includes a TPE seal for enhanced environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M63 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC63
Alternatively Known As: EMC Cable Gland M63, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 41.0-50.0mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.5 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Made from brass with nickel plating for durability and corrosion resistance
- Includes locknut as standard
- Seal made from TPE for effective environmental protection
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M63 for 41-50mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical applications.
