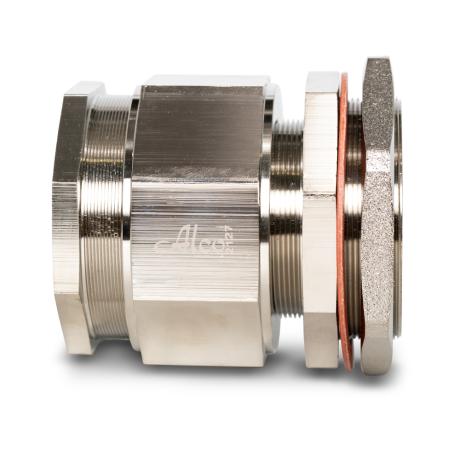

Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M75 is designed for cable diameters of 48-56mm, providing superior sealing and EMC protection. With an IP66/68 rating, it ensures reliable performance in both indoor and outdoor environments. Made from durable brass with nickel plating, this gland is perfect for industrial and commercial electrical wiring, offering long-lasting corrosion resistance and effective environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC75A
Alternatively Known As: EMC Cable Gland M75, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 48-56mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 75mm x 75mm x 75mm
- Weight: 0.5 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Made from brass with nickel plating for durability and corrosion resistance
- Includes locknut as standard
- Seal made from TPE for effective environmental protection
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof sealing reduces risk of environmental damage and cable failure
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M75 for 48-56mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical applications requiring EMC protection.
