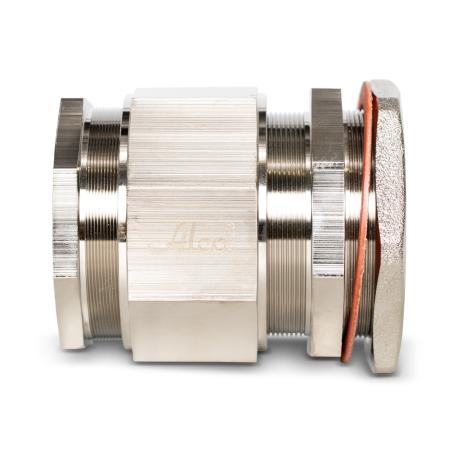

Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M75 is designed for cable diameters of 56-64mm, providing robust EMC protection and weatherproof sealing. Ideal for both indoor and outdoor electrical installations, this gland features a durable brass construction with nickel plating and a TPE seal for effective sealing against water and contaminants. Perfect for industrial and commercial applications, it ensures compliance with AS1939-1990 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC75B
Alternatively Known As: EMC Cable Gland M75, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 56-64mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.5 kg
Key Features
- Provides seal on cable sheath and contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Locknut supplied as standard
- Temperature range from –20°C to +80°C
- Made from brass with nickel plating for durability
- Seal made from TPE for effective sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents ingress of water and contaminants, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M75 for cable diameter 56-64mm is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust EMC and weatherproof protection.
