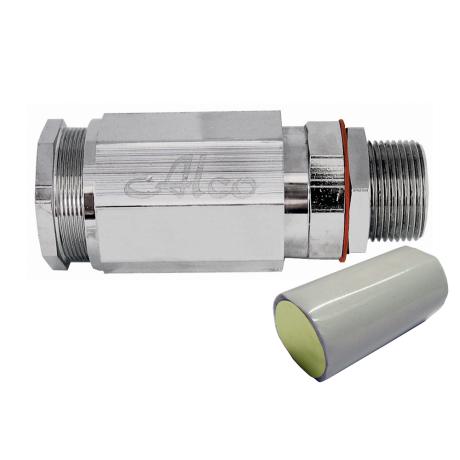

Cable Gland Brass Hazardous Barrier IP66/68 M20 | 11.5-18mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
The Cable Gland Brass Hazardous Barrier IP66/68 M20 is designed for effective sealing of armoured cables with a diameter range of 11.5-18mm. Certified for hazardous areas, it provides robust protection against dust and water ingress, making it ideal for both indoor and outdoor electrical installations in explosive atmospheres. With durable brass construction and included locknut, this cable gland ensures long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Barrier IP66/68 M20 | 11.5-18mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW20-B.
Alternatively Known As: Hazardous Area Cable Gland, Brass Barrier Cable Gland, IP66 Cable Gland, Armoured Cable Gland M20
Technical Specifications
- Cable Diameter Range: 11.5-18mm
- Ingress Protection: IP66/68 (30m submersion)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- Locknut supplied as standard
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.15 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides effective seal on cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
- Comes with IEC Ex and ANZ Ex certification
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring hazardous area protection
- Indoor and outdoor electrical installations in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of dust and moisture, enhancing equipment longevity
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Barrier Cable Gland IP66/68 M20 is available for immediate purchase, ideal for hazardous area armoured cable installations.
