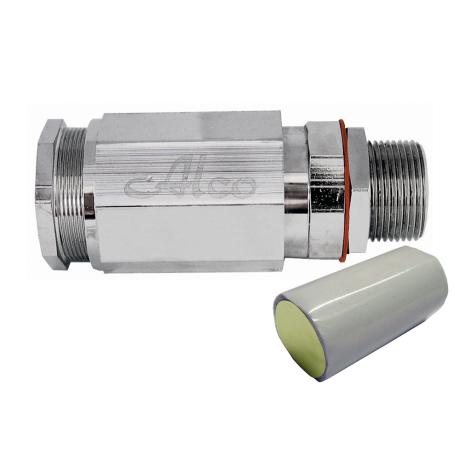

Cable Gland Brass Hazardous Barrier IP66/68 M20 | 14-18mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
The Cable Gland Brass Hazardous Barrier IP66/68 M20 is designed for armoured cables with a diameter range of 14-18mm, ensuring robust sealing in hazardous areas. Certified for Ex db I/IIC and Ex eb I/IIC compliance, it provides superior protection against dust and water ingress, making it ideal for both indoor and outdoor electrical installations in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Barrier IP66/68 M20 | 14-18mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW20SB-B
Alternatively Known As: Hazardous Area Cable Gland, Brass Barrier Cable Gland, IP66/68 Armoured Cable Gland, M20 Hazardous Cable Gland
Technical Specifications
- Cable Diameter Range: 14-18mm
- Thread Size: M20
- Ingress Protection: IP66/68 (30m)
- Material: Brass
- Certifications: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- Locknut included
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.15 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides seal on cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring hazardous area compliance
- Indoor and outdoor electrical installations in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 - Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of dust and moisture, enhancing system longevity
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Barrier Cable Gland IP66/68 M20 for armoured cables 14-18mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
