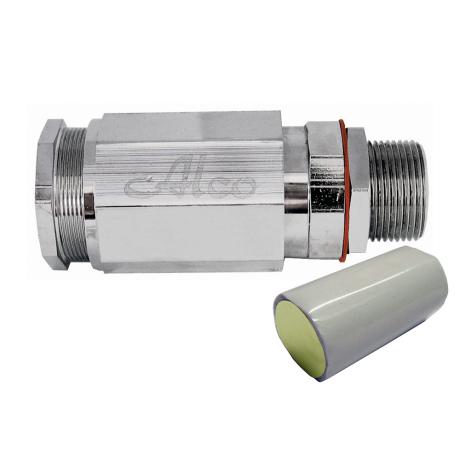

Cable Gland Brass Hazardous Barrier IP66/68 | M20 Thread | 28-32mm Cable Diameter | by Wattmaster
The Cable Gland Brass Hazardous Barrier IP66/68 is designed for secure sealing of armoured cables with a diameter of 28-32mm. Ideal for hazardous area electrical installations, it features a robust M20 thread and is certified for Ex db I/IIC, Ex eb I/IIC, and Ex ta IIIC environments. With an IP66/68 rating, it provides reliable protection against dust and water ingress, ensuring long-lasting performance in both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Barrier IP66/68 | M20 Thread | 28-32mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW32B-B
Alternatively Known As: Hazardous Area Cable Gland, Brass Barrier Cable Gland, IP66/68 Cable Gland, M20 Armoured Cable Gland
Technical Specifications
- Cable Diameter: 28-32mm
- Thread Size: M20
- Ingress Protection: IP66/68 (30m underwater)
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- Includes barrier material and locknut
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides seal on cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection up to 30 meters underwater
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring hazardous area compliance
- Indoor and outdoor electrical installations in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of dust and water, enhancing equipment longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous Barrier Cable Gland IP66/68 M20 for 28-32mm armoured cables is available for immediate purchase, ideal for hazardous area electrical installations.
