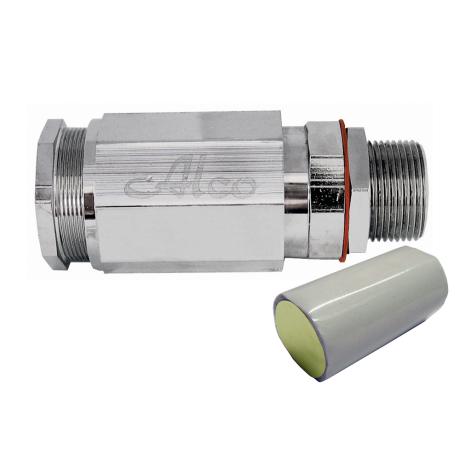

Cable Gland Brass Hazardous Barrier | IP66/68 Rated | M20 for 32-37mm Cables | by Wattmaster
The Cable Gland Brass Hazardous Barrier is designed for effective sealing of armoured cables with a diameter of 32-37mm. Rated IP66/68 for dust and water protection, it’s perfect for indoor and outdoor hazardous area installations. This durable brass construction ensures compliance with IEC Ex standards, making it ideal for industrial applications in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Barrier | IP66/68 Rated | M20 for 32-37mm Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW40A-B
Alternatively Known As: Hazardous Area Cable Gland, Brass Barrier Cable Gland, IP66/68 Cable Gland, Armoured Cable Gland M20
Technical Specifications
- Cable Diameter Suitability: 32-37mm
- Ingress Protection: IP66/68 (30m submersion)
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Material: Brass
- Locknut included
- Barrier material included
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides effective seal on cable sheath and clamps SWA
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation by a qualified electrician or technician trained in hazardous area equipment is required to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring hazardous area compliance
- Indoor and outdoor electrical installations in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of contaminants, enhancing system longevity
Warranty Information
Standard manufacturer warranty against defects, typically 1 year.
Available Now
Available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing and protection.
