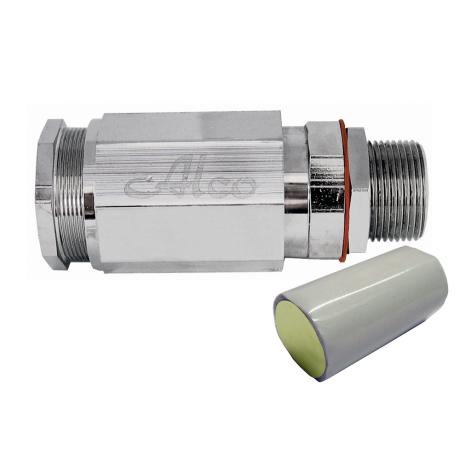

Cable Gland Brass Hazardous Barrier IP66/68 M20 | 7.8-12.7mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
The Cable Gland Brass Hazardous Barrier IP66/68 M20 is designed for sealing armoured cables with a diameter range of 7.8-12.7mm. Ideal for industrial hazardous areas, it provides robust protection against dust and water ingress, certified for Ex db I/IIC and Ex eb I/IIC environments. With durable brass construction and included barrier material, this gland ensures safe electrical installations in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Barrier IP66/68 M20 | 7.8-12.7mm Cable Diameter | Indoor/Outdoor Use | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW20LRB
Alternatively Known As: Hazardous Area Cable Gland, Brass Barrier Cable Gland, IP66/68 Cable Gland, M20 Armoured Cable Gland
Technical Specifications
- Cable Diameter Range: 7.8-12.7mm
- Ingress Protection: IP66/68 (30m submersion)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Thread Size: M20
- Suitable for Armoured Cable (SWA)
- Barrier Material Included
- Locknut Supplied
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.15 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides seal on cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress (up to 30m)
- Includes barrier material and locknut as standard
- Complies with IEC Ex and ANZ Ex certification standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring hazardous area compliance
- Indoor and outdoor electrical installations in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent environmental contamination
- Supports safe electrical installations in hazardous environments
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Brass Hazardous Barrier Cable Gland IP66/68 M20 is available for immediate purchase, ideal for hazardous area armoured cable installations.
