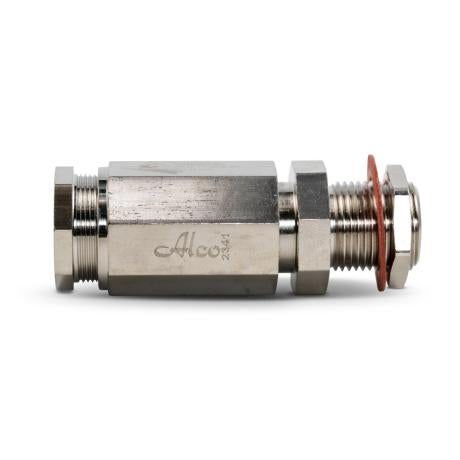

Cable Gland Brass Hazardous IP66/68 M20 | 11.5-16mm Cable Diameter | Ex Protection Certified | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M20 is designed for armoured cables with a diameter of 11.5-16mm, providing a secure seal and certified protection for hazardous areas. With an IP66/68 rating, it ensures durability and reliability in explosive atmospheres, making it ideal for industrial environments. This gland includes a locknut for secure installation, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M20 | 11.5-16mm Cable Diameter | Ex Protection Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW20
Alternatively Known As: Brass Hazardous Cable Gland M20, Armoured Cable Gland IP66/68, Ex Cable Gland M20, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 11.5-16.0 mm
- Material: Brass
- Ingress Protection: IP66/68 (30m underwater)
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Protection Type: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Suitable for armoured cables with diameter 11.5-16mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC protection
- High ingress protection rating IP66/68 (30m underwater)
- Includes locknut as standard for secure installation
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Wattmaster Brass Hazardous IP66/68 M20 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area cable sealing applications.
