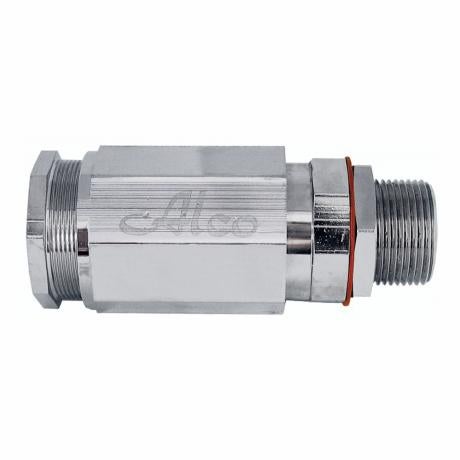

Cable Gland Brass Hazardous IP66/68 M20 | 14-18mm Cable Diameter | Ex Certified | by Wattmaster

BRAND: Alco
SKU: ALCHAW20SB
$39.70 List price: $48.10
+ −
30 Days Return Delivery Options
The Cable Gland Brass Hazardous IP66/68 M20 is designed for armoured cables with a diameter of 14-18mm, providing a secure seal and certified for hazardous areas. With high ingress protection rated IP66/68, it ensures durability and safety in explosive atmospheres, making it ideal for industrial environments and outdoor installations.

Product Name/Title: Cable Gland Brass Hazardous IP66/68 M20 | 14-18mm Cable Diameter | Ex Certified | by Wattmaster

Brand: Wattmaster

SKU: ALCHAW20SB

Alternatively Known As: Brass Hazardous Cable Gland M20, Armoured Cable Gland IP66/68, Ex Certified Cable Gland

Technical Specifications
  • Cable Diameter Range: 14-18mm
  • Material: Brass
  • Ingress Protection: IP66/68 (30m underwater)
  • Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
  • Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
  • Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
  • Locknut: Included
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Suitable for armoured cables with diameter 14-18mm
  • Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
  • Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
  • High ingress protection rating IP66/68 (30m underwater)
  • Locknut supplied as standard for secure installation
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with hazardous area electrical installations to ensure compliance and safety.
Applications
  • Indoor and outdoor hazardous area cable sealing
  • Armoured cable installations requiring Ex certified glands
  • Industrial environments with explosive atmospheres
Standards & Compliance
  • AS/NZS 60079 – Explosive atmospheres standards
Environmental Benefits
  • Durable brass construction reduces need for frequent replacements
  • High ingress protection prevents environmental contamination and cable damage
Warranty Information

Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.

Available Now

Available for immediate purchase, ideal for hazardous area armoured cable installations requiring certified sealing solutions.
