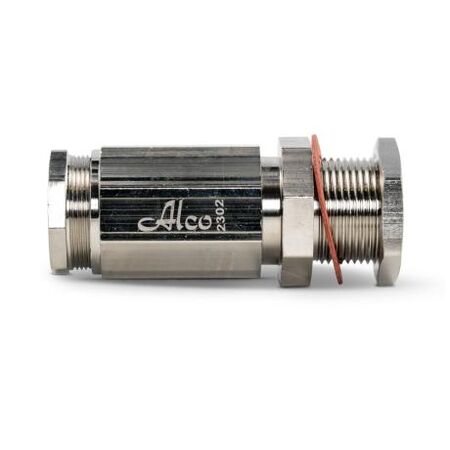

Cable Gland Brass Hazardous IP66/68 M25 | 16-20mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M25 is designed for armoured cables with a diameter of 16-20mm, providing a secure seal and certified for hazardous areas. With IP66/68 ingress protection, it ensures reliable performance in both indoor and outdoor environments, making it ideal for industrial and mining applications where explosive atmospheres are present.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M25 | 16-20mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW25A
Alternatively Known As: Hazardous Area Cable Gland, Armoured Cable Gland M25, Brass Cable Gland IP66/68, Ex Cable Gland
Technical Specifications
- Cable Diameter Range: 16.0-20.0 mm
- Ingress Protection: IP66/68 (30m submersion)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Included
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Suitable for armoured cables with diameter 16-20mm
- Provides a secure seal on cable sheath and clamps SWA
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- IP66/68 rated for dust and water ingress protection up to 30m
- Locknut supplied as standard for secure installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician trained in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous IP66/68 M25 Armoured Cable Gland 16-20mm is available for immediate purchase, ideal for hazardous area cable sealing applications.
