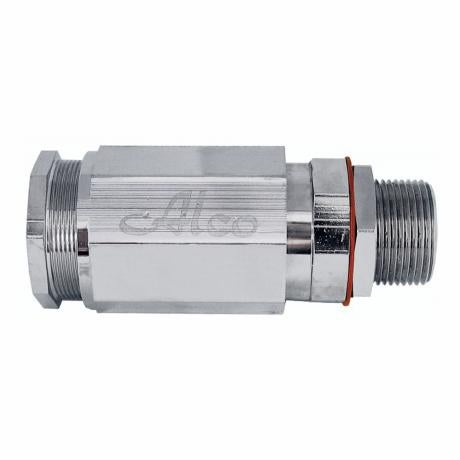

Cable Gland Brass Hazardous IP66/68 M25 | 20-24mm Cable Diameter | Ex Protection Certified | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M25 is designed for armoured cables with a diameter of 20-24mm, providing a secure seal and certified for hazardous areas. Ideal for industrial and mining environments, it features high ingress protection and includes a locknut for secure installation, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M25 | 20-24mm Cable Diameter | Ex Protection Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW25B
Alternatively Known As: Brass Armoured Cable Gland M25, Hazardous Area Cable Gland, IP66/68 Cable Gland, Ex Cable Gland M25
Technical Specifications
- Cable Diameter Suitability: 20-24mm
- Ingress Protection: IP66/68 (30m submersion)
- Material: Brass
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Explosion Protection: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Suitable for armoured cables with diameter 20-24mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC protection
- High ingress protection rating IP66/68 (30m)
- Includes locknut as standard for secure installation
- Certified to IEC Ex TSA 13.0001 and ANZ Ex 13.3000 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician trained in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions. Typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M25 Armoured Cable Gland 20-24mm is available for immediate purchase, ideal for hazardous area cable sealing in industrial and mining applications.
