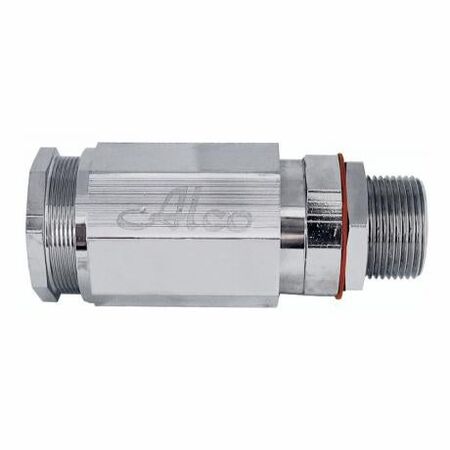

Cable Gland Brass Hazardous IP66/68 M32 | 28-32mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M32 is designed for armoured cables with a diameter of 28-32mm, providing a secure seal and protection in hazardous environments. Certified for IEC Ex and ANZ Ex approvals, it ensures safety in explosive atmospheres while offering high ingress protection rated IP66/68, making it ideal for both indoor and outdoor installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M32 | 28-32mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW32B
Alternatively Known As: Brass Hazardous Cable Gland M32, Armoured Cable Gland IP66/68, Ex Cable Gland M32, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Suitability: 28-32mm
- Material: Brass
- Ingress Protection: IP66/68 (30m underwater)
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Included
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.15 kg
Key Features
- Suitable for armoured cables with diameter 28-32mm
- Provides secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous locations with IEC Ex and ANZ Ex approvals
- Ingress protection rated IP66/68 (30m underwater)
- Locknut supplied as standard for secure fitting
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous zones
Professional Installation Requirements
- Installation by a qualified electrician or technician trained in hazardous area equipment is required to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Indoor and outdoor armoured cable installations
- Ex hazardous environments requiring IP66/68 protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty coverage as per manufacturer’s standard terms and conditions.
Available Now
The Wattmaster Brass Hazardous IP66/68 M32 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area cable sealing applications.
