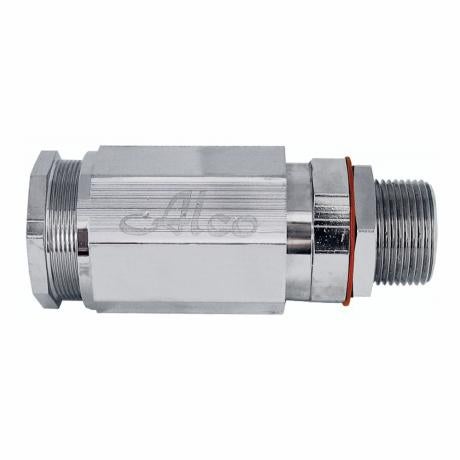

Cable Gland Brass Hazardous IP66/68 M40 | 37-42mm Cable Diameter | Secure Seal & Locknut Included | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M40 is designed for armoured cables with a diameter of 37-42mm, providing a secure seal and certified for hazardous areas. Ideal for both indoor and outdoor installations, this gland ensures compliance with safety standards while protecting electrical systems from dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M40 | 37-42mm Cable Diameter | Secure Seal & Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW40B
Alternatively Known As: Brass Hazardous Cable Gland M40, Armoured Cable Gland IP66/68, Ex Cable Gland M40, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 37.0-42.0 mm
- Ingress Protection: IP66/68 (30m submersion)
- Material: Brass
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Suitable for armoured cables with diameter 37-42mm
- Provides a secure seal on cable sheath and clamps SWA
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m)
- Includes locknut as standard for secure installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction ensures long service life reducing replacement waste
- Seals cables effectively preventing ingress of dust and water, protecting electrical systems and reducing failure risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous IP66/68 M40 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area armoured cable installations requiring certified Ex protection.
