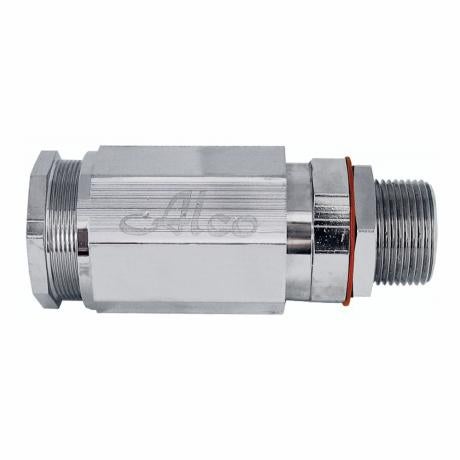

Cable Gland Brass Hazardous IP66/68 M50 | 41-46mm Cable Diameter | Secure Seal & Locknut Included | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M50 is designed for secure sealing of armoured cables with a diameter of 41-46mm. Ideal for hazardous areas, it features a robust brass construction and is rated for dust and water ingress protection up to 30m. Certified for explosive atmospheres, this gland ensures safety and compliance in industrial and mining environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M50 | 41-46mm Cable Diameter | Secure Seal & Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW50A
Alternatively Known As: Brass Hazardous Cable Gland M50, Armoured Cable Gland IP66/68, Ex Cable Gland M50
Technical Specifications
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Cable Diameter Range: 41.0-46.0 mm
- Certifications: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Explosion Protection: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Dimensions (H x L x W): 70mm x 90mm x 70mm
- Weight: 0.3 kg
Key Features
- Provides secure seal on cable sheath and clamps steel wire armour (SWA)
- Rated IP66/68 for dust and water ingress protection up to 30m
- Certified for hazardous locations: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Includes locknut as standard for secure fitting
- Suitable for armoured cables with diameter 41-46mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hazardous area electrical installations to ensure compliance and safety.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring high ingress protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M50 Cable Gland is available for immediate purchase, ideal for hazardous area armoured cable sealing applications.
