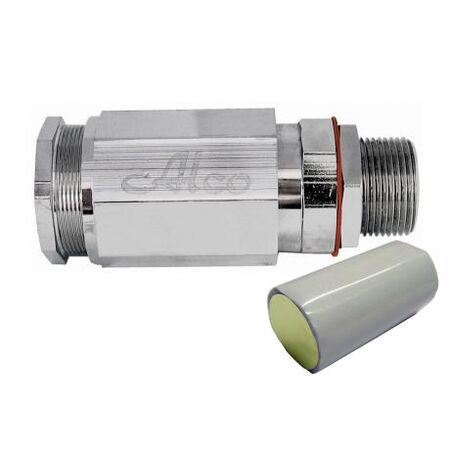

Cable Gland Brass Hazardous IP66/68 M50 | 45-51mm Cable Diameter | Explosion Protection | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M50 is designed for robust sealing of armoured cables with a diameter of 45-51mm. Ideal for hazardous area electrical installations, it features IP66/68 ingress protection and is certified for Ex db I/IIC, ensuring safety in explosive atmospheres. Built from durable brass, it includes a barrier kit and locknut for secure installation, making it perfect for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M50 | 45-51mm Cable Diameter | Explosion Protection | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW50B-B.
Alternatively Known As: Brass Hazardous Cable Gland M50, Armoured Cable Gland IP66/68, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Suitability: 45.0-51.0 mm
- Ingress Protection: IP66/68 (30m underwater)
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Explosion Protection: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Material: Brass with barrier kit included
- Locknut supplied as standard
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Provides seal on cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for dust and water ingress protection (up to 30m)
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring explosion protection
- Indoor and outdoor electrical installations in hazardous zones
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS 1939-1990 – Cable glands for electrical installations
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent environmental contamination
- Supports safe electrical installations reducing risk of hazardous leaks
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M50 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
