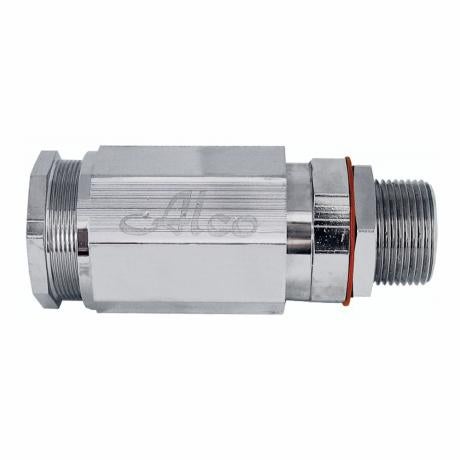

Cable Gland Brass Hazardous IP66/68 M50 | 45-51mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M50 is designed for armoured cables with a diameter of 45-51mm, providing a secure seal and protection in hazardous areas. Certified for explosive atmospheres, it features high ingress protection rated IP66/68, making it ideal for industrial and mining environments. With a durable brass construction and included locknut, this cable gland ensures reliable performance and safety in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M50 | 45-51mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW50B
Alternatively Known As: Brass Hazardous Cable Gland M50, Armoured Cable Gland IP66/68, Ex Cable Gland M50, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 45.0-51.0 mm
- Ingress Protection: IP66/68 (30m underwater)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Included
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- Suitable for armoured cables with diameter 45-51mm
- Provides a secure seal on cable sheath and clamps SWA
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m)
- Locknut supplied as standard for secure installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with hazardous area cable gland installation and compliance with relevant Ex standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for hazardous area armoured cable installations requiring high ingress protection and explosion safety.
