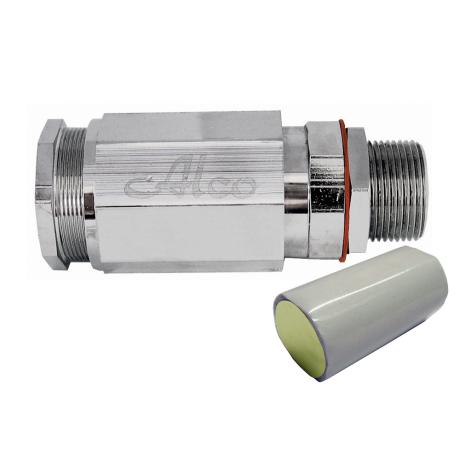

Cable Gland Brass Hazardous IP66/68 M63 | 51-57mm Cable Diameter | Durable Brass Construction | Barrier Kit Included | @Each by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M63 is designed for armoured cables with a diameter of 51-57mm, ensuring robust sealing in hazardous areas. With IP66/68 ingress protection, it effectively prevents dust and water ingress, making it ideal for both indoor and outdoor electrical installations. Certified for Ex db I/IIC and Ex eb I/IIC areas, this gland includes a barrier kit and locknut for enhanced safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M63 | 51-57mm Cable Diameter | Durable Brass Construction | Barrier Kit Included | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCHAW63A-B.
Alternatively Known As: Brass Hazardous Cable Gland M63, Armoured Cable Gland IP66/68, Ex Cable Gland M63, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 51.0-57.0 mm
- Ingress Protection: IP66/68 (30m)
- Material: Brass
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- Includes barrier kit and locknut
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 1.2 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Seals cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation by qualified personnel trained in hazardous area electrical installations is required to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in explosive atmospheres
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals prevent ingress of dust and water, protecting electrical systems and reducing failure risks
Warranty Information
Standard manufacturer warranty applies; typically 12 months against defects.
Available Now
The Wattmaster Brass Hazardous Cable Gland IP66/68 M63 for armoured cables 51-57mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
