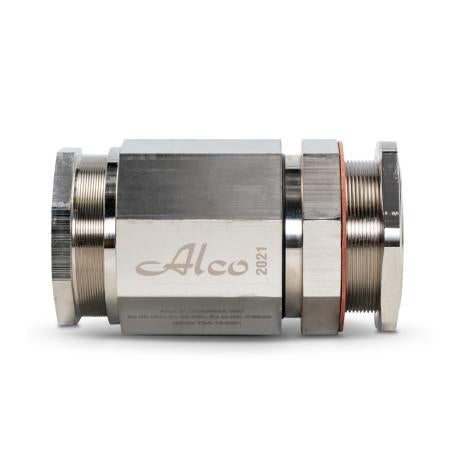

Cable Gland Brass Hazardous IP66/68 M63 | 51-57mm Cable Diameter | Secure Seal & Locknut | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M63 is designed for armoured cables with a diameter of 51-57mm, providing a secure seal and protection against dust and water ingress. Certified for hazardous areas, it ensures compliance with IEC Ex and ANZ Ex standards, making it ideal for industrial applications in explosive atmospheres. Built from durable brass, this gland enhances system longevity and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M63 | 51-57mm Cable Diameter | Secure Seal & Locknut | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW63A
Alternatively Known As: Hazardous Area Cable Gland, Armoured Cable Gland M63, Brass Cable Gland IP66/68, Explosion Proof Cable Gland
Technical Specifications
- Material: Brass
- Ingress Protection: IP66/68 (30m water submersion)
- Cable Diameter Range: 51.0-57.0 mm
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Explosion Protection Types: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 80mm x 100mm x 80mm
- Weight: 1.2 kg
Key Features
- Suitable for armoured cables with diameter 51-57mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Rated IP66/68 for dust and water ingress protection up to 30m depth
- Certified for hazardous areas with IEC Ex and ANZ Ex certifications
- Includes locknut for secure installation
- Complies with IEC/AS/NZS 60079 series standards for explosive atmospheres
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable protection in explosive atmospheres
- Indoor and outdoor electrical installations requiring hazardous area compliance
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of dust and water, enhancing system longevity
Warranty Information
1 year warranty covering manufacturing defects and performance under specified conditions.
Available Now
The Wattmaster Brass Hazardous IP66/68 M63 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
