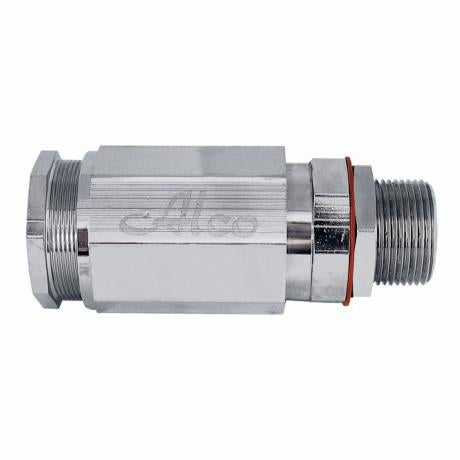

Cable Gland Brass Hazardous IP66/68 M63 | 57-63mm Cable Diameter | Ex db I/IIC Certified | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M63 is designed for armoured cables with a diameter of 57-63mm, providing a secure seal and protection in hazardous environments. Certified for explosive atmospheres, it features high ingress protection rated IP66/68, ensuring durability and reliability for industrial applications. Ideal for both indoor and outdoor electrical installations, this cable gland is a must-have for safety-conscious professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M63 | 57-63mm Cable Diameter | Ex db I/IIC Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW63B
Alternatively Known As: Hazardous Area Cable Gland, Brass Armoured Cable Gland, IP66 Cable Gland, Ex Cable Gland M63
Technical Specifications
- Cable Diameter Suitability: 57.0-63.0 mm
- Ingress Protection: IP66/68 (30m submersion)
- Hazardous Area Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Included
- Certificate Numbers: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Dimensions (H x L x W): 80mm x 100mm x 80mm
- Weight: 1.2 kg
Key Features
- Suitable for armoured cables with diameter 57-63mm
- Provides a secure seal on cable sheath and clamps SWA
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m)
- Locknut supplied as standard for secure installation
- Suitable for use in explosive atmospheres (IEC Ex and ANZ Ex certified)
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in hazardous environments
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS 1939-1990 – Cable glands for electrical installations
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent ingress of dust and water, enhancing equipment longevity
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Available for immediate purchase, ideal for industrial hazardous area cable installations requiring robust sealing and protection.
