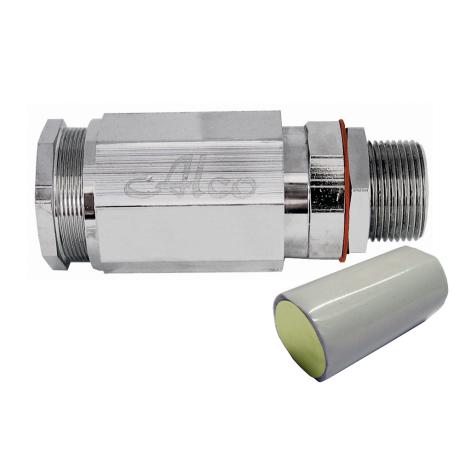

Cable Gland Brass Hazardous IP66/68 M63 | 57-63mm Cable Diameter | Explosion Proof | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M63 is designed for secure sealing of armoured cables with a diameter range of 57-63mm. Ideal for hazardous area electrical installations, it features IP66/68 protection against dust and water ingress, ensuring safety in explosive environments. Certified for Ex db I/IIC and Ex eb I/IIC areas, this durable brass gland includes a barrier kit and locknut for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M63 | 57-63mm Cable Diameter | Explosion Proof | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW63B-B
Alternatively Known As: Hazardous Area Cable Gland, Brass Armoured Cable Gland, Explosion Proof Cable Gland, IP68 Cable Gland M63
Technical Specifications
- Cable Diameter Range: 57.0-63.0 mm
- Ingress Protection: IP66/68 (30m)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Suitable for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- Includes barrier kit and locknut
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Seals cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
- Complies with IEC Ex and ANZ Ex certification standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations requiring explosion protection
- Indoor and outdoor electrical cable entry points in hazardous zones
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals cables effectively to prevent environmental contamination
- Supports safe electrical installations minimizing risk of hazardous leaks
Warranty Information
Standard manufacturer warranty of 12 months against defects.
Available Now
Available for immediate purchase, ideal for hazardous area electrical installations requiring certified cable sealing solutions.
