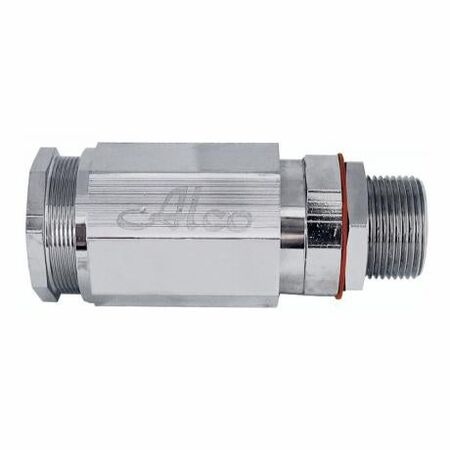

Cable Gland Brass Hazardous IP66/68 M75 | 62-69mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M75 is designed for armoured cables with a diameter of 62-69mm, providing a secure seal and certified for hazardous environments. With high ingress protection rated IP66/68, it ensures reliable performance in explosive atmospheres, making it ideal for industrial applications and outdoor electrical cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M75 | 62-69mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW75A
Alternatively Known As: Brass Armoured Cable Gland, Hazardous Area Cable Gland, IP68 Cable Gland M75
Technical Specifications
- Cable Diameter Range: 62.0-69.0mm
- Ingress Protection: IP66/68 (30m)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Included
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Suitable for armoured cables with diameter 62-69mm
- Provides a secure seal on cable sheath and clamps SWA
- Certified for hazardous environments with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m)
- Locknut supplied as standard for secure installation
Professional Installation Requirements
- Installation should be performed by qualified personnel trained in hazardous area electrical installations to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in explosive atmospheres
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Wattmaster Brass Hazardous IP66/68 M75 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area armoured cable sealing applications.
