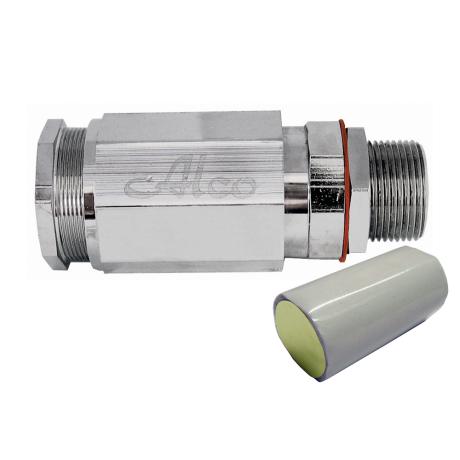

Cable Gland Brass Hazardous IP66/68 M75 | 66-75mm Cable Diameter | Barrier Kit Included | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M75 is designed for armoured cable installations in hazardous areas, accommodating cable diameters from 66 to 75mm. With an IP66/68 rating for dust and water protection, this gland ensures reliable sealing and safety in explosive atmospheres. Ideal for both indoor and outdoor applications, it includes a barrier kit and locknut for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M75 | 66-75mm Cable Diameter | Barrier Kit Included | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW75B-B
Alternatively Known As: Brass Hazardous Cable Gland M75, Armoured Cable Gland IP66/68, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 66.0-75.0 mm
- Ingress Protection: IP66/68 (30m)
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Material: Brass
- Barrier kit included
- Locknut supplied as standard
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Barrier kit suitable for indoor or outdoor use
- Seals cable sheath and clamps steel wire armour (SWA)
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
- IP66/68 rated for protection against dust and water ingress up to 30m
- Includes barrier material and locknut as standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in explosive atmospheres
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Seals prevent ingress of contaminants, protecting electrical systems and reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M75 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area armoured cable installations.
