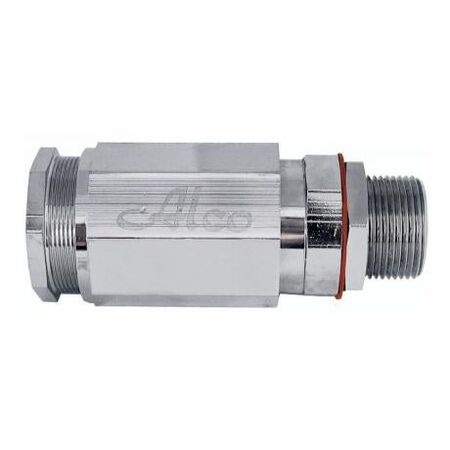

Cable Gland Brass Hazardous IP66/68 M75 | 66-75mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M75 is designed for armoured cables with a diameter of 66-75mm, providing a secure seal and certified for hazardous locations. With high ingress protection rated IP66/68, it ensures reliable performance in explosive atmospheres, making it ideal for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M75 | 66-75mm Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW75B
Alternatively Known As: Hazardous Area Cable Gland, Armoured Cable Gland M75, Brass Cable Gland IP66/68, Ex Rated Cable Gland
Technical Specifications
- Cable Diameter Range: 66.0-75.0 mm
- Ingress Protection: IP66/68 (30m underwater)
- Hazardous Area Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Suitable for armoured cables with diameter 66-75mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous locations with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m underwater)
- Includes locknut as standard for secure installation
- Certified to IEC Ex TSA 13.0001 and ANZ Ex 13.3000 standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in explosive atmospheres
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Brass Hazardous IP66/68 M75 Armoured Cable Gland is available for immediate purchase, ideal for hazardous industrial and commercial electrical installations.
